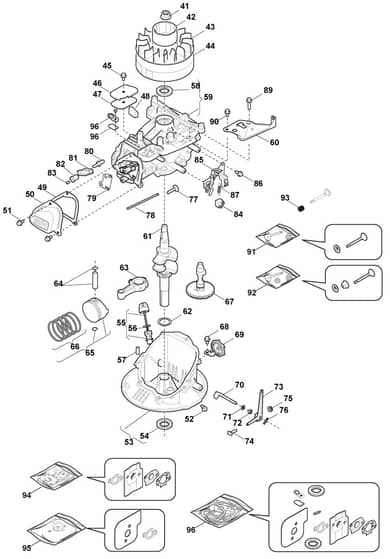

S421R PD - 2014-2018 - 299439043/M14 - Mountfield Rotary Mower RSCT100 Cylinder Diagram

Description

Mountfield S421R PD Parts Diagram

Product Name - S421 R PD

Model Year - 2014-2018

Model Type - NTL 434 TR-R

Art.N - 299439043/M14

Engine Model - RS100 OHV

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118550717/0 Available to backorder	Nut	£1.55 £1.29
44	MO118550754/0 Available to backorder	Flywheel Ass.Y	£48.58 £40.48
48	MO118550660/0 Available to backorder	Oil Filter	£3.10 £2.58
49	MO118550680/0 Available to backorder	Gasket	£2.26 £1.88
50	MO118550681/0 Available to backorder	Cover Comp. Head	£8.59 £7.16
53	MO118550672/0 Available to backorder	Crankcase Cover Assy	£64.75 £53.96
54	MO118550668/0 Available to backorder	Oil Seal	£4.08 £3.40
55	MO118550745/0 In stock	Tank Cap	£6.62 £5.52
56	MO118550670/0 Available to backorder	Or Ring	£1.40 £1.17
57	MO118550664/0 Available to backorder	Pin	£2.81 £2.34
58	MO118550661/0 Available to backorder	Oil Seal	£3.52 £2.93
59	MO118550729/0 Available to backorder	Cylinder Head Assy	£154.86 £129.05
61	MO118550674/0 Available to backorder	Crankshaft	£65.40 £54.50
63	MO118550675/0 Available to backorder	Connecting Rod Assy	£18.31 £15.26
64	MO118550678/0 Available to backorder	Circlip + Piston Pin	£4.22 £3.52
65	MO118550677/0 Available to backorder	Piston Assy	£34.28 £28.57
66	MO118550679/0 Available to backorder	Piston. Ring Set	£14.08 £11.73
67	MO118550682/0 Available to backorder	Camshaft Assy	£18.16 £15.13
69	MO118550662/0 Available to backorder	Speed Governor Assy	£8.74 £7.28
70	MO118550665/0 Available to backorder	Shaft. Governor Arm	£4.37 £3.64
72	MO118550671/0 Available to backorder	Gasket	£2.26 £1.88
76	MO118550667/0 Available to backorder	Cotter Pin	£1.69 £1.41
77	MO118550683/0 Available to backorder	Valve Lifter	£5.06 £4.22
78	MO118550684/0 Available to backorder	Push Rods	£8.45 £7.04
80	MO118550686/0 Available to backorder	Screw	£3.52 £2.93
81	MO118550687/0 Available to backorder	Valve Arm	£5.64 £4.70
82	MO118550688/0 Available to backorder	Nut	£3.94 £3.28
83	MO118550689/0 Available to backorder	Nut	£1.55 £1.29
87	MO118550759/0 Available to backorder	Spring	£1.55 £1.29
89	MO112791500/0 Available to backorder	Screw	£1.49 £1.24
90	MO112735699/0 Available to backorder	Screw	£1.40 £1.17
91	MO118550692/0 Available to backorder	Exhaust Valve Assy	£18.72 £15.60
92	MO118550691/0 Available to backorder	Intake Valve Assy	£21.67 £18.06
93	MO118550690/0 Available to backorder	Spring	£4.50 £3.75
94	MO118550699/0 In stock	Carburettor Gasket Set	£5.48 £4.57
95	MO118550731/0 Available to backorder	Cylinder Head Gasket Set	£6.34 £5.28
96	MO118550730/0 Available to backorder	Engine Gasket Set	£17.45 £14.54
