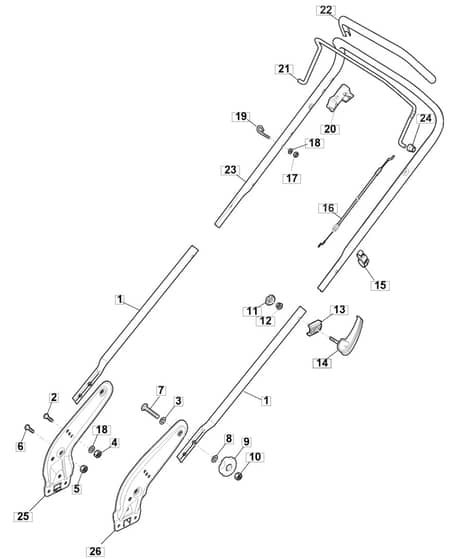

S421R HP - 2014-2018 - 299434043/M14 - Mountfield Rotary Mower Handle Diagram

Name: S421R HP - 2014-2018 - 299434043/M14 - Mountfield Rotary Mower Handle Diagram
SKU: s421r_hp_299434043_m14_handle-group
Price: 1.02 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

S421R HP - 2014-2018 - 299434043/M14 - Mountfield Rotary Mower Handle Diagram

Description

Mountfield S421R HP Parts Diagram

Product Name - S421 R HP

Model Year - 2014-2018

Model Type - NTL 434-R

Art.N - 299434043/M14

Engine Model - RS100 OHV

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381007048/0 Available to backorder	Handle. Lower Part Black	£29.56 £24.63
2	MO112727803/0 Available to backorder	Screw	£1.55 £1.29
3	MO112543002/0 Available to backorder	Washer	£1.22 £1.02
5	MO112155000/0 In stock	Nut	£1.55 £1.29
6	MO112760605/0 In stock	Screw	£3.38 £2.82
7	MO112691200/0 Available to backorder	Screw	£1.69 £1.41
8	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
9	MO122399900/0 In stock	Black Knob	£1.55 £1.29
10	MO112293200/0 In stock	Nut	£1.55 £1.29
11	MO322399835/0 In stock	Black Knob	£1.97 £1.64
12	MO122131750/0 In stock	Nut	£1.97 £1.64
13	MO322680016/1 In stock	Handle Fixing Washer	£1.97 £1.64
14	MO381103360/0 In stock	Locking Handle Lever	£5.48 £4.57
15	MO118390020/0 Available to backorder	Conduit Clip	£1.82 £1.52
16	MO181030053/0 In stock	Cable. Thread Engine Brake	£15.62 £13.02
17	MO112154510/0 In stock	Nut	£1.55 £1.29
18	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
19	MO122430313/0 In stock	Guide Spring	£3.94 £3.28
20	MO322545204/0 In stock	Fulcrum Pin	£1.82 £1.52
21	MO181003300/1 Available to backorder	Lever. Engine Brake	£14.63 £12.19
22	MO122291050/0 Available to backorder	Handgrip Black	£14.22 £11.85
23	MO381006838/0 Available to backorder	Handle. Upper Part Black	£30.97 £25.81
24	MO122041966/0 Available to backorder	Bushing	£1.55 £1.29
25	MO381005149/0 Available to backorder	Right Bracket Black	£15.20 £12.67
26	MO381005151/0 Available to backorder	Left Bracket Black	£15.20 £12.67
