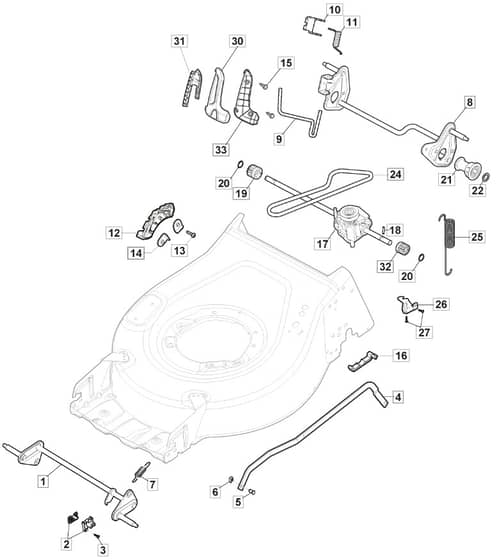

S421 PD - 2019-2020 - 2L0432843/M19 - Mountfield Rotary Mower Height Adjusting Diagram

Name: S421 PD - 2019-2020 - 2L0432843/M19 - Mountfield Rotary Mower Height Adjusting Diagram
SKU: s421_pd_2l0432843_m19_height_adjusting-group
Price: 1.29 GBP
Availability: InStock

Part No. s421_pd_2l0432843_m19_height_adjusting-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

S421 PD - 2019-2020 - 2L0432843/M19 - Mountfield Rotary Mower Height Adjusting Diagram

Description

Mountfield S421 PD Parts Diagram

Product Name - S 421 PD

Model Year - 2019-2020

Model Type - CP1 434 SQ

Art.N - 2L0432843/M19

Engine Model - ST140 OHV Autochoke

	Part No.	Details
1	MO381302937/1 Available to backorder	Axle. Front Wheels From S.N 20BA2WBH000001	£64.75 £53.96
1	MO381302937/0 Available to backorder	Axle. Front Wheels To S.N 20BA2WBH076122	£27.76 £23.13
2	MO322785305/1 In stock	Support	£2.69 £2.24
3	MO112728697/0 In stock	Screw	£1.55 £1.29
4	MO322869731/1 Available to backorder	Rod	£18.16 £15.13
5	MO122519823/0 In stock	Pin	£2.24 £1.87
6	MO112436050/0 In stock	Plate	£1.84 £1.53
7	MO122450494/0 In stock	Spring	£4.78 £3.98
8	MO381302851/1 Available to backorder	Rear Wheel Axle	£45.04 £37.53
9	MO322321553/0 Available to backorder	Lever. Height Adjustment	£3.10 £2.58
10	MO322557179/0 Available to backorder	Plate	£2.40 £2.00
11	MO122446198/1 Available to backorder	Spring	£1.70 £1.42
12	MO322735608/0 Available to backorder	Sector. Height Adjustment	£2.22 £1.85
13	MO112727807/0 In stock	Screw	£1.55 £1.29
14	MO322545232/1 Available to backorder	Plate	£1.55 £1.29
14	MO322545232/2 Available to backorder	Plate From S.N 20DA2WBH028505	£1.55 £1.29
15	MO112728696/0 Available to backorder	Screw	£1.63 £1.36
16	MO322785500/0 In stock	Support	£1.84 £1.53
17	MO181003114/0 In stock	Gear Box	£124.58 £103.82
18	MO122753000/0 In stock	Pin	£1.55 £1.29
19	MO322570138/0 In stock	Right Pinion	£7.39 £6.16
20	MO112608600/0 In stock	Seeger	£1.55 £1.29
21	MO322042066/0 In stock	Bushing	£1.84 £1.53
22	MO112521371/0 Available to backorder	Washer	£1.63 £1.36
24	MO135063710/0 In stock	Belt	£7.63 £6.36
25	MO122430254/0 In stock	Spring	£4.08 £3.40
26	MO322778473/1 Available to backorder	Bracket	£2.22 £1.85
27	MO112728904/0 Available to backorder	Screw	£1.55 £1.29
30	MO322394550/0 In stock	Upper Handgrip Black	£2.68 £2.23
31	MO322394551/0 In stock	Handgrip	£1.97 £1.64
32	MO122570120/1 In stock	Left Pinion	£7.39 £6.16
33	MO322394559/0 Available to backorder	Lower Handgrip	£2.12 £1.77
