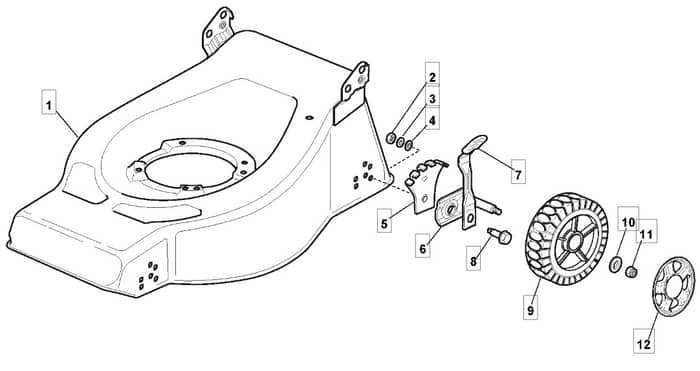

S420 HP - 2010 - 298196023/ADE - Mountfield Rotary Mower Deck Diagram

Name: S420 HP - 2010 - 298196023/ADE - Mountfield Rotary Mower Deck Diagram
SKU: s420_hp_298196023_ade_deck-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

S420 HP - 2010 - 298196023/ADE - Mountfield Rotary Mower Deck Diagram

Description

Mountfield S420 HP Parts Diagram

Product Name - S 420 HP

Model Year - 2010

Model Type - R 434

Art.N - 298196023/ADE

Be the first to review this product

0 product questions

	Part No.	Details
2	MO112293200/0 In stock	Nut	£1.55 £1.29
3	MO112583500/0 In stock	Grower	£1.55 £1.29
4	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
5	MO322735547/0 Available to backorder	Sector. Height Adjustment	£2.26 £1.88
6	MO381005082/0 In stock	Wheel Support	£17.18 £14.32
7	MO481003285/1 In stock	Lever	£19.54 £16.28
8	MO122519811/0 Available to backorder	Pin	£1.55 £1.29
9	MO381007350/0 Available to backorder	Wheel	£8.87 £7.39
10	MO325670011/0 In stock	Antifriction Washer	£1.55 £1.29
11	MO112155000/0 In stock	Nut	£1.55 £1.29
12	MO322110381/0 Available to backorder	Hub Cap Spark D.170 [Grey]	£3.38 £2.82
