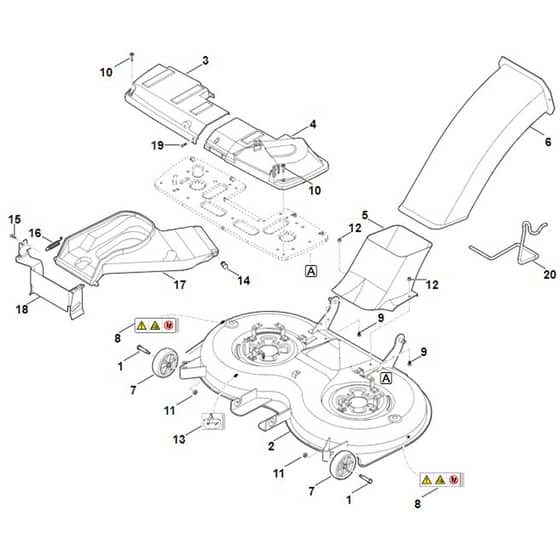

Stihl RT6127.1 ZL - Mowing Deck Housing - Parts Diagram

Description

Stihl RT6127.1 ZL - Mowing Deck Housing - Parts Diagram

	Part No.	Details
-1	ST6170 760 0983 Available to backorder	mowing unit assy. (Contains L 1-5+7-14+17 + M 1-48 + N 1-6)	£1,068.41 £890.34
1	ST6170 763 3100 In stock	Whell bolt	£5.77 £4.81
2	ST6170 700 8552 Available to backorder	Housing (Contains 8)	£565.49 £471.24
3	ST6170 706 0851 Available to backorder	Guard right	£33.46 £27.88
4	ST6170 706 0856 Available to backorder	Guard left	£32.44 £27.03
5	ST6170 763 1410 Available to backorder	Ejection chute lower part	£59.17 £49.31
6	ST6170 760 5100 Available to backorder	Ejection chute upper part	£81.96 £68.30
7	ST6170 704 9700 Available to backorder	Gauge wheel	£12.06 £10.05
8	ST6170 967 4437 Available to backorder	Label	£2.15 £1.79
9	ST9027 318 1280 Available to backorder	Flat head screw M6x16	£0.91 £0.76
10	ST9039 488 1289 Available to backorder	Self-tapping screw M6x25	£1.03 £0.86
11	ST9212 260 1100 In stock	Hexagon nut M8	£0.72 £0.60
12	ST9216 261 0901 Available to backorder	Hexagon nut M6	£0.68 £0.57
13	ST6170 967 4466 Available to backorder	Synchro belt routing sticker	£2.15 £1.79
14	ST6375 703 9010 In stock	Bolt	£2.50 £2.08
15	ST6165 706 9500 Available to backorder	Screw M6x20	£8.09 £6.74
16	ST6165 703 5130 In stock	Tension spring	£3.06 £2.55

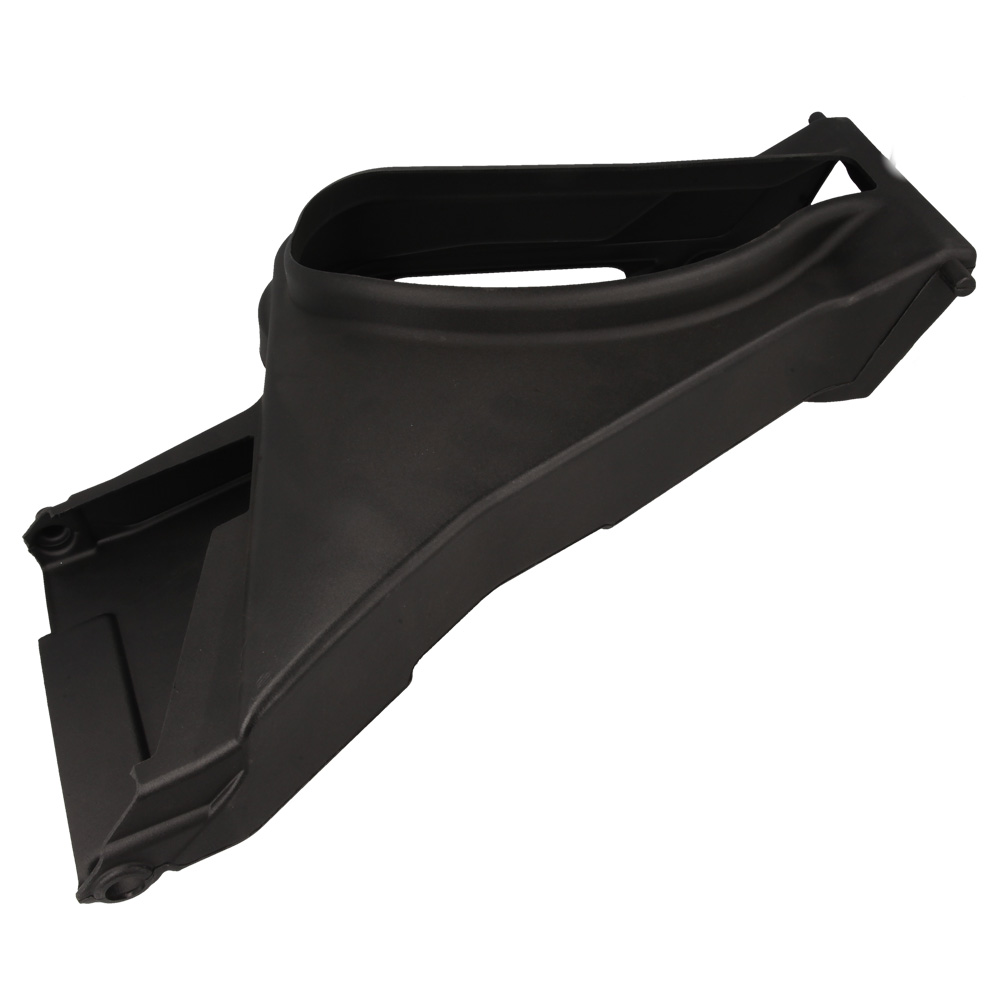

17	ST6170 706 0786 Available to backorder	Cover	£40.63 £33.86
18	ST6170 706 8210 Available to backorder	Guard plate	£34.60 £28.83
19	ST9039 488 1287 Available to backorder	Self-tapping screw M6x22	£1.03 £0.86
20	ST6160 706 2800 Available to backorder	Bar (discharge chute)	£24.80 £20.67
