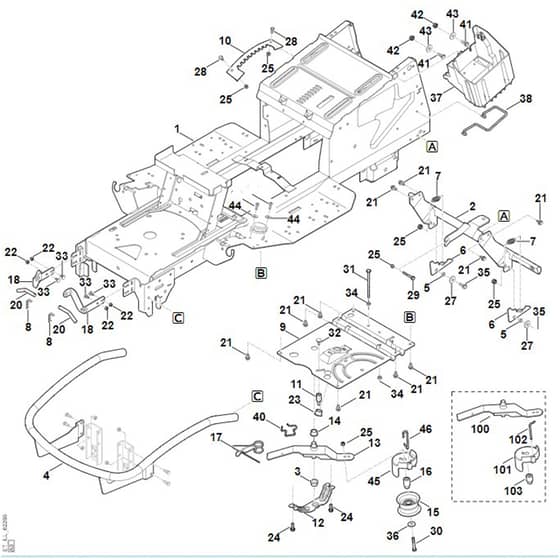

Stihl RT6127.1 ZL - Frame - Parts Diagram

Description

Stihl RT6127.1 ZL - Frame - Parts Diagram

	Part No.	Details
-1	ST6170 007 1007 Available to backorder	Conversion kit (tensioner arm) (Contains 13+16+25+30+45+46)	£63.84 £53.20
1	ST6170 700 3107 Available to backorder	Frame	£514.01 £428.34
2	ST6170 760 9105 Available to backorder	Support	£97.92 £81.60
4	ST6907 760 7310 Available to backorder	Bumper bar	£157.32 £131.10
5	ST6170 763 0720 Available to backorder	Distance sleeve	£1.46 £1.22
6	ST6170 763 6010 Available to backorder	Interlock lever	£10.01 £8.34
7	ST6170 703 5120 Available to backorder	Tension spring	£1.94 £1.62
8	ST6170 763 1000 Available to backorder	Spring clip 28	£2.51 £2.09
9	ST6170 703 8910 Available to backorder	Plate	£120.96 £100.80
10	ST6165 703 9500 Available to backorder	Notched plate	£33.35 £27.79
11	ST6165 704 1810 Available to backorder	Bolt	£4.45 £3.71
12	ST6140 760 5201 Available to backorder	Mounting (Contains 3)	£45.52 £37.93
13	ST6170 760 0843 Available to backorder	Clamping arm	£42.68 £35.57
14	ST6170 162 3700 Available to backorder	Bearing bushing	£6.04 £5.03
15	ST6140 760 6600 Available to backorder	Pulley	£35.05 £29.21
16	ST6170 764 2825 Available to backorder	Spacer sleeve (tension roller)	£16.97 £14.14
17	ST6170 704 3900 Available to backorder	Spring	£5.81 £4.84
18	ST6170 007 1002 Available to backorder	Hinge set	£45.74 £38.12
20	ST6170 763 6300 Available to backorder	Socket bolt	£5.36 £4.47
21	ST9039 488 1782 Available to backorder	Self-tapping screw M8x16	£1.03 £0.86
22	ST9216 261 0901 Available to backorder	Hexagon nut M6	£0.68 £0.57
23	ST9533 003 9246 Available to backorder	Flange sleeve	£7.51 £6.26
24	ST9039 488 1784 Available to backorder	Self-tapping screw M8x16	£1.03 £0.86
25	ST9212 260 1100 In stock	Hexagon nut M8	£0.72 £0.60
27	ST9307 021 0180 Available to backorder	Washer 84	£0.35 £0.29
28	ST9008 318 1780 Available to backorder	Hexagon head screw M8x16	£1.03 £0.86
29	ST9008 319 1950 Available to backorder	Hexagon head screw M8x50	£1.82 £1.52
30	ST9007 319 1961 Available to backorder	Hexagon head screw M8x55-8.8	£1.94 £1.62
31	ST9008 319 2080 Available to backorder	Hexagon head screw M8x130	£3.64 £3.03
32	ST9027 318 1820 Available to backorder	Flat head screw M8x20	£1.03 £0.86
33	ST9027 068 1280 Available to backorder	Flat head screw M6x16	£0.91 £0.76
34	ST9210 259 1100 Available to backorder	Hexagon nut M8	£0.68 £0.57
35	ST9008 318 1800 Available to backorder	Hexagon head screw M8x20	£1.03 £0.86
36	ST9289 003 0190 In stock	Washer 9	£0.35 £0.29
37	ST6170 403 0102 Available to backorder	Battery mounting	£33.35 £27.79
38	ST6170 403 0410 Available to backorder	Battery holder	£26.86 £22.38
40	ST6170 764 1900 Available to backorder	Bow	£4.88 £4.07
43	ST9310 021 0180 Available to backorder	Washer 8.4	£0.35 £0.29
44	ST9307 010 0140 Available to backorder	Washer 64	£0.35 £0.29
46	ST6170 704 9435 Available to backorder	Belt guide	£12.86 £10.72
100	ST6170 760 0842 Available to backorder	Clamping arm	£43.01 £35.84
101	ST6170 706 0865 Available to backorder	Protective cover (tension roller)	£6.72 £5.60
103	ST6170 764 2820 Available to backorder	Spacer sleeve (tension roller)	£15.25 £12.71
