Stihl RT5112.1Z - Engine, Tank - Parts Diagram

Description

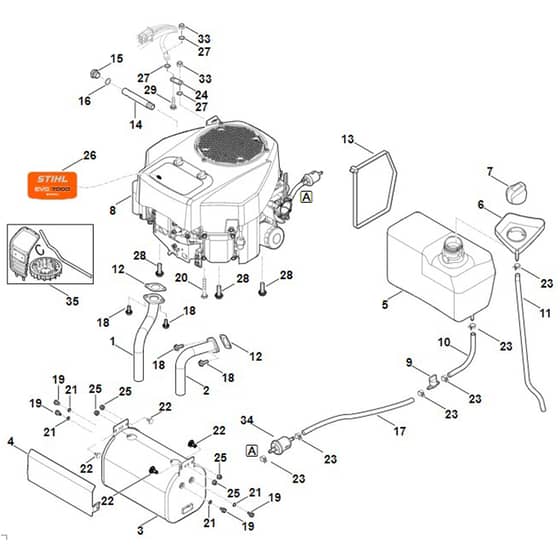

Stihl RT5112.1Z - Engine, Tank - Parts Diagram

	Part No.	Details
1	ST6170 140 2555 Available to backorder	Manifold right	£67.68 £56.40
2	ST6170 140 2550 Available to backorder	Manifold left	£67.08 £55.90
3	ST6170 140 0640 Available to backorder	Muffler	£133.08 £110.90
4	ST6160 145 3710 Available to backorder	Guard plate	£33.35 £27.79
5	ST6170 351 0400 Available to backorder	Fuel tank	£162.84 £135.70
6	ST6170 352 4010 Available to backorder	Overflow tray	£10.46 £8.72
7	ST6170 350 1501 Available to backorder	Filler cap	£8.77 £7.31
8	ST6165 011 1822 Available to backorder	EVC 7000.0 (EVC7000-0001)	£1,207.20 £1,006.00
9	ST0000 350 1000 Available to backorder	Fuel cock	£10.24 £8.53
10	ST6170 350 2700 Available to backorder	Fuel hose	£16.84 £14.03
11	ST6170 358 0800 Available to backorder	Hose	£13.76 £11.47
12	ST6140 149 0600 Available to backorder	Muffler gasket	£2.96 £2.47
13	ST0751 010 7236 Available to backorder	Cable tie	£7.51 £6.26
14	ST6170 021 8200 Available to backorder	Tube	£44.60 £37.17
15	ST6170 028 1100 Available to backorder	Plug	£5.00 £4.17
16	ST6170 029 0500 Available to backorder	Gasket	£1.46 £1.22
17	ST6170 350 2720 Available to backorder	Fuel hose	£10.82 £9.02
18	ST9018 321 1801 Available to backorder	Hexagon screw with flange M8x20	£1.03 £0.86
19	ST9039 488 0996 Available to backorder	Self-tapping screw M6x12	£0.79 £0.66
20	ST9018 318 1951 Available to backorder	Hexagon head screw M8x50	£1.82 £1.52
21	ST9330 630 0140 Available to backorder	Shakeproof washer 6.4	£0.35 £0.29
22	ST9027 068 1280 Available to backorder	Flat head screw M6x16	£0.91 £0.76
23	ST0000 988 9100 Available to backorder	Hose clip	£2.28 £1.90
24	ST6170 405 1300 Available to backorder	Bridging plate	£3.77 £3.14
25	ST9214 261 0900 Available to backorder	Lock nut M6	£0.46 £0.38
26	ST6160 967 4405 Available to backorder	Label	£8.77 £7.31
27	ST9330 630 0180 Available to backorder	Shakeproof washer 8.4	£0.35 £0.29
28	ST9018 318 2410 Available to backorder	Hexagon head screw M10x30	£1.46 £1.22
29	ST9008 318 1800 Available to backorder	Hexagon head screw M8x20	£1.03 £0.86
33	ST9214 261 1105 In stock	Lock nut M8	£0.48 £0.40
34	ST0004 350 1802 In stock	Fuel filter	£10.14 £8.45
35	ST6165 007 1800 Available to backorder	Repair kit (EVC 7000.0)	£66.60 £55.50
