Stihl RT4097.1 SX - Mowing Deck Housing - Parts Diagram

Description

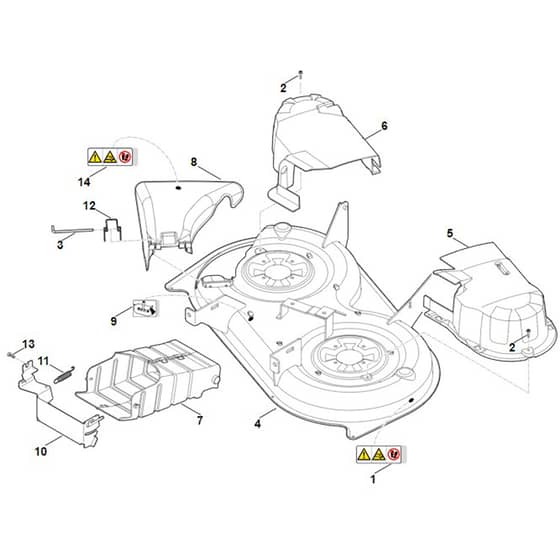

Stihl RT4097.1 SX - Mowing Deck Housing - Parts Diagram

	Part No.	Details
1	ST6170 967 4437 Available to backorder	Label	£2.15 £1.79
0	ST6165 760 0902 Available to backorder	mowing unit assy. (Contains K 1-9+12+14 + L 1-32)	£735.77 £613.14
2	ST9039 488 1289 Available to backorder	Self-tapping screw M6x25	£1.03 £0.86
3	ST6165 703 0900 Available to backorder	Axle	£10.01 £8.34
4	ST6165 700 8507 Available to backorder	Housing (Contains 1+9)	£384.12 £320.10
5	ST6165 780 2025 Available to backorder	Cover left	£63.84 £53.20
6	ST6165 780 2030 Available to backorder	Cover right	£65.40 £54.50
7	ST6165 780 2020 Available to backorder	Cover	£63.84 £53.20
8	ST6165 700 2712 Available to backorder	Flap (Contains 14)	£40.28 £33.57
9	ST6165 967 4411 Available to backorder	Label	£2.15 £1.79
10	ST6165 706 8200 Available to backorder	Guard plate	£38.14 £31.78
11	ST6165 703 5130 In stock	Tension spring	£3.06 £2.55
12	ST6165 703 4900 In stock	Torsion spring	£2.15 £1.79
13	ST6165 706 9500 Available to backorder	Screw M6x20	£8.09 £6.74
