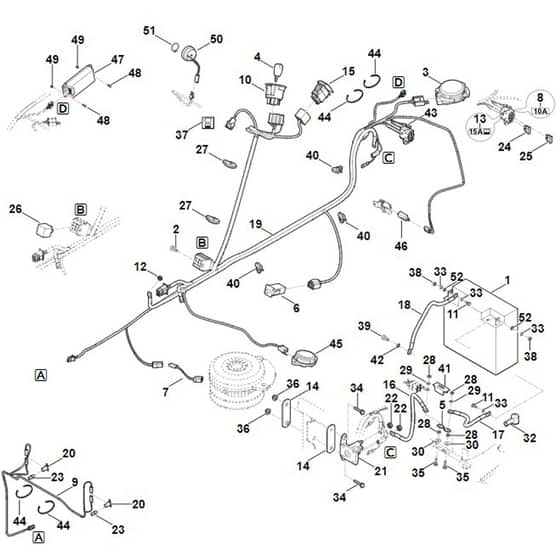

Stihl RT4097.1 SX - Electric Equipment - Parts Diagram

Name: Stihl RT4097.1 SX - Electric Equipment - Parts Diagram
SKU: rt4097_1_sx_electric_equipment-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl RT4097.1 SX - Electric Equipment - Parts Diagram

Description

Stihl RT4097.1 SX - Electric Equipment - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST6170 400 1115 Available to backorder	Battery 12V-20Ah (Contains 11+33+38)	£157.30 £131.08
2	ST9075 478 4610 Available to backorder	Pan head screw IS D6x16	£0.88 £0.73
3	ST6170 430 0550 Available to backorder	Switch	£23.32 £19.43
4	ST0000 430 8101 Available to backorder	Ignition key	£5.50 £4.58
5	ST6170 437 0800 Available to backorder	Retainer ring 150A	£3.86 £3.22
6	ST6170 430 0530 Available to backorder	Switch	£15.28 £12.73
7	ST6170 440 0500 Available to backorder	Adapter cable	£20.90 £17.42
8	ST6170 967 4480 Available to backorder	Label 10A	£2.08 £1.73
9	ST6160 440 1945 Available to backorder	Light cable	£31.36 £26.13
10	ST6170 430 2411 Available to backorder	Ignition lock (Contains 4)	£53.80 £44.83
11	ST9008 318 0980 Available to backorder	Hexagon head screw M5x10	£0.88 £0.73
12	ST9991 003 0000 Available to backorder	Hexagon nut 1/4"	£1.10 £0.92
13	ST6170 967 4490 Available to backorder	Label 15A	£2.08 £1.73
14	ST6160 405 8000 Available to backorder	Insulatur	£3.40 £2.83
15	ST6140 430 0520 In stock	Switch	£18.92 £15.77
16	ST6165 440 1900 Available to backorder	Starter relay cable	£30.80 £25.67
17	ST6165 440 1910 Available to backorder	Fuse cables	£31.58 £26.32
18	ST6165 440 1920 Available to backorder	Ground wire	£32.02 £26.68
19	ST6165 440 3022 Available to backorder	Wiring harness (Contains 7+8+13+24+37+40)	£145.20 £121.00
20	ST6170 440 1800 Available to backorder	Socket	£19.48 £16.23
21	ST6170 430 3100 In stock	Relay	£52.80 £44.00
23	ST0000 405 3100 Available to backorder	Lamp 12V/10 W	£24.20 £20.17
24	ST0751 031 5003 Available to backorder	Fuse 15A	£3.30 £2.75
25	ST0751 031 5002 Available to backorder	Fuse 10A	£3.30 £2.75
26	ST6160 430 3100 Available to backorder	Relay	£35.08 £29.23
27	ST0751 010 7232 Available to backorder	Cable tie	£2.54 £2.12
28	ST9210 259 0700 Available to backorder	Hexagon nut M5	£0.48 £0.40
29	ST9321 630 0120 Available to backorder	Spring washer 5	£0.88 £0.73
30	ST9307 020 0120 Available to backorder	Washer 53	£0.48 £0.40
32	ST6140 405 5100 Available to backorder	Cap	£2.98 £2.48
33	ST9291 020 0120 Available to backorder	Washer 53	£0.48 £0.40
34	ST9008 318 1350 Available to backorder	Hexagon head screw M6x25	£1.00 £0.83
35	ST9008 319 1020 Available to backorder	Hexagon head screw M5x20	£0.88 £0.73
36	ST9216 261 0901 Available to backorder	Hexagon nut M6	£0.66 £0.55
37	ST6170 435 2600 Available to backorder	Plate (Charging symbol)	£2.54 £2.12
40	ST0751 010 7294 Available to backorder	cable tie	£2.54 £2.12
41	ST6165 403 2500 Available to backorder	Cover	£4.52 £3.77
42	ST9330 630 0500 Available to backorder	Shakeproof washer 6.4	£0.48 £0.40
43	ST6165 440 1930 Available to backorder	Battery fuse cables	£12.32 £10.27
45	ST6170 430 0541 Available to backorder	Switch	£23.00 £19.17
46	ST6005 435 0410 Available to backorder	Stop switch	£7.26 £6.05
47	ST6160 430 1410 Available to backorder	Electronic modul	£75.90 £63.25
47	ST6160 430 1401 Available to backorder	Electronic modul	£86.36 £71.97
49	ST9212 260 0600 Available to backorder	Hexagon nut M4	£0.48 £0.40
50	ST6140 430 8800 Available to backorder	Buzzer	£18.16 £15.13
51	ST9455 621 2790 Available to backorder	Circlip 25x12	£1.00 £0.83
52	ST9320 630 0120 Available to backorder	Spring washer 5	£0.48 £0.40
