Echo RP-1250 Barrow

Name: Echo RP-1250 Barrow
SKU: rp_1250_barrow-group
Price: 0.3 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

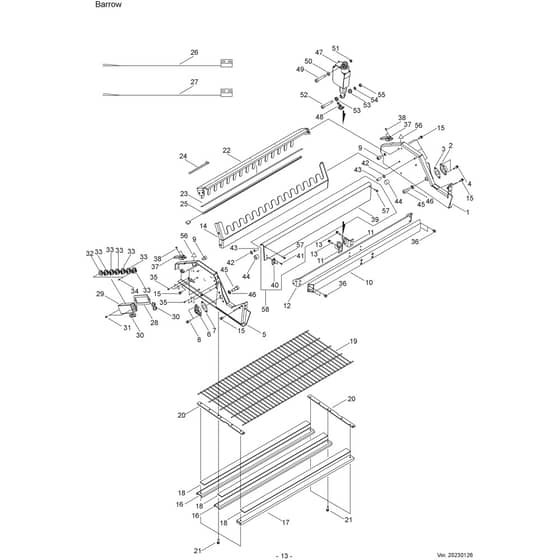

Echo RP-1250 - Barrow - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ECERYB00400002 Available to backorder	Right Spar	£186.12 £155.10
5	ECERYB00400003 Available to backorder	Left Spar	£210.60 £175.50
6	ECERYB02100007 Available to backorder	Self-Align. Bearing	£97.18 £80.98
7	ECERYB00000076 Available to backorder	Spacer	£11.66 £9.72
9	ECERYB50610012 Available to backorder	Screw M10X12	£4.74 £3.95
10	ECERYB00100007 Available to backorder	Rear Crossbar	£154.30 £128.58
11	ECERYB00000078 Available to backorder	Bottom Fixation	£17.90 £14.92
12	ECERYB00000079 Available to backorder	Rear Plate	£72.84 £60.70
14	ECERYB00000080 Available to backorder	Front Plate	£101.54 £84.62
16	ECERYB00000081 Available to backorder	Crossbar	£49.32 £41.10
17	ECERYB00100008 Available to backorder	Crossbar Tube	£154.30 £128.58
18	ECERYB01000008 Available to backorder	Rubber	£12.46 £10.38
19	ECERYB00300031 Available to backorder	Grid	£158.44 £132.03
20	ECERYB00000082 Available to backorder	Positioning Plate	£15.94 £13.28
21	ECERYB50006022 Available to backorder	Screw M6X22	£2.92 £2.43
22	ECERYB00000083 Available to backorder	Rake	£263.16 £219.30
23	ECERYB00900007 Available to backorder	Double Side Adhesive	£15.62 £13.02
24	ECERYB01200001 Available to backorder	Cable Tie	£0.36 £0.30
25	ECERYB06220052 Available to backorder	Counter	£249.12 £207.60
26	ECERYB03300094 Available to backorder	Full Tank Cable	£34.40 £28.67
27	ECERYB03300095 Available to backorder	Wheel Blockage Cable	£34.40 £28.67
28	ECERYB01500015 Available to backorder	Epdm Foam	£36.68 £30.57
29	ECERYB01300020 Available to backorder	Connectors Box	£21.82 £18.18
30	ECERYB01200047 Available to backorder	Grommet	£3.94 £3.28
31	ECERYB80004000 Available to backorder	Nut M4	£0.48 £0.40
32	ECERYB03900010 Available to backorder	Terminal Block Lid	£0.84 £0.70
33	ECERYB03900011 Available to backorder	Terminal Block	£7.00 £5.83
34	ECERYB50803006 Available to backorder	Screw M3X6	£0.46 £0.38
36	ECERYB52706016 Available to backorder	Screw M6X16	£1.38 £1.15
37	ECERYB01900010 Available to backorder	Hook Fastener	£151.50 £126.25
38	ECERYB51104008 Available to backorder	Screw M4X8	£0.46 £0.38
39	ECERYB00000112 Available to backorder	Detection Sheet	£90.20 £75.17
40	ECERYB03400000 Available to backorder	Bonnet Magnet	£8.80 £7.33
41	ECERYB50803010 Available to backorder	Screw M3X10	£0.46 £0.38
44	ECERYB02200007 Available to backorder	Cushion Cylindrical	£3.92 £3.27
45	ECERYB51010016 Available to backorder	Centring Screw M10X16	£26.46 £22.05
46	ECERYB71412000 Available to backorder	Elastic Washer M12	£0.42 £0.35
47	ECERYB03000012 Available to backorder	Linear Actuator	£651.60 £543.00
48	ECERYB03000013 Available to backorder	Cable Lock	£6.52 £5.43
50	ECERYB70010000 Available to backorder	Washer M10	£0.36 £0.30
52	ECERYB53308055 Available to backorder	Centring Screw M8X55	£20.52 £17.10
53	ECERYB02100010 Available to backorder	Flanged Bearing	£73.30 £61.08
54	ECERYB70008000 Available to backorder	Washer M8	£0.48 £0.40
55	ECERYB80008000 Available to backorder	Nut M8	£0.82 £0.68
56	ECERYB04000026 Available to backorder	Caution Label	£1.06 £0.88
57	ECERYB50305018 Available to backorder	Screw M5X18	£0.40 £0.33
58	ECERYB06220054 Available to backorder	Full Tank Detection	£90.24 £75.20
