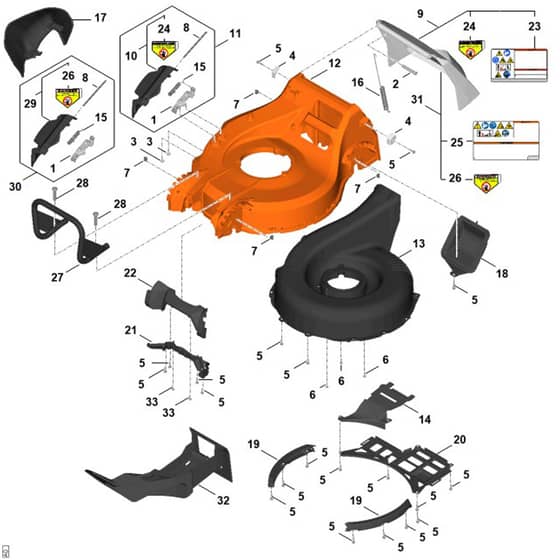

Stihl RMA756.0 V - Housing 02 - Parts Diagram

Stihl RMA756.0 V - Housing 02 - Parts Diagram
Stihl RMA756.0 V - Housing 02 - Parts Diagram

Description

Stihl RMA756.0 V - Housing 02 - Parts Diagram

Ref. Img. Part No. Details
  1 Support
Support
ST0000 704 5401
Available to backorder
Support
£12.98 £10.82

  2 Bolt
Bolt
ST0000 706 5905
Available to backorder
Bolt
£5.50 £4.58

  3 Screw M5x12 10.9
Screw M5x12 10.9
ST4867 951 3500
Available to backorder
Screw M5x12 10.9
£0.76 £0.63

  4 Guard plate
Guard plate
ST6378 706 8200
Available to backorder
Guard plate
£3.08 £2.57

  5 Screw IS-Ax6x20
Screw IS-Ax6x20
ST9076 611 4431
Available to backorder
Screw IS-Ax6x20
£2.32 £1.93

  6 Self-tapping screw IS-P5x22
Self-tapping screw IS-P5x22
ST9104 020 3053
Available to backorder
Self-tapping screw IS-P5x22
£0.88 £0.73

  7 Cage nut M6
Cage nut M6
ST9991 003 1045
Available to backorder
Cage nut M6
£1.32 £1.10

  8 Bolt
Bolt
STWA41 703 9000
Available to backorder
Bolt
£9.58 £7.98

  10 Flap (Contains 24)
Flap (Contains 24)
STWA70 700 2705
Available to backorder
Flap (Contains 24)
£11.22 £9.35

  13 Insert
Insert
STWA71 701 4300
Available to backorder
Insert
£130.90 £109.08

  14 Guide plate
Guide plate
STWA71 701 4500
Available to backorder
Guide plate
£32.34 £26.95

  15 Torsion spring
Torsion spring
STWA70 703 4915
Available to backorder
Torsion spring
£3.74 £3.12

  16 Tension spring
Tension spring
STWA70 703 5100
Available to backorder
Tension spring
£4.72 £3.93

  17 Extension
Extension
STWA71 706 0300
Available to backorder
Extension
£40.82 £34.02

  18 Cover
Cover
STWA70 706 0700
Available to backorder
Cover
£11.12 £9.27

  19 Protective strip
Protective strip
STWA71 706 7300
Available to backorder
Protective strip
£31.68 £26.40

  20 Guard
Guard
STWA71 706 8100
Available to backorder
Guard
£46.30 £38.58

  21 Bumper bar
Bumper bar
STWA70 760 7300
Available to backorder
Bumper bar
£55.54 £46.28

  22 Pushrod
Pushrod
STWA70 766 0200
Available to backorder
Pushrod
£37.84 £31.53

  24 Warning note
Warning note
ST0000 967 7515
Available to backorder
Warning note
£2.08 £1.73

  28 Self-tapping screw M8x40
Self-tapping screw M8x40
ST9039 488 1850
Available to backorder
Self-tapping screw M8x40
£1.42 £1.18

  32 Insert
Insert
STWA71 701 1600
Available to backorder
Insert
£85.24 £71.03

  33 Self-tapping screw P5x30
Self-tapping screw P5x30
ST9104 007 4294
Available to backorder
Self-tapping screw P5x30
£1.00 £0.83
