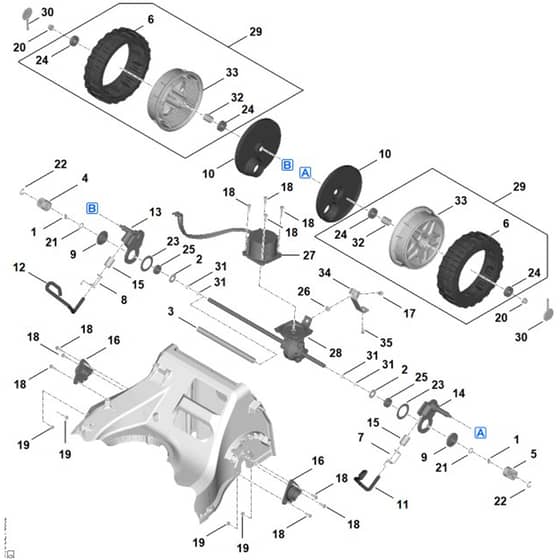

Stihl RMA750.0 V - Rear Height Adjustment, Drive - Parts Diagram

Name: Stihl RMA750.0 V - Rear Height Adjustment, Drive - Parts Diagram
SKU: rma750_0_v_rear_height_adjustment_drive-group
Price: 0.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl RMA750.0 V - Rear Height Adjustment, Drive - Parts Diagram

Description

Stihl RMA750.0 V - Rear Height Adjustment, Drive - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST0000 704 8300 In stock	Freewheel key	£1.66 £1.38
2	ST6103 704 7910 Available to backorder	Protection disk	£1.10 £0.92
3	ST6105 703 9111 Available to backorder	Tube	£2.08 £1.73
4	ST6105 704 7400 In stock	Pinion	£13.76 £11.47
5	ST6105 704 7410 In stock	Pinion	£13.96 £11.63
6	ST6375 704 9500 Available to backorder	Tyre	£41.92 £34.93
7	ST6378 703 4900 Available to backorder	Torsion spring left	£2.32 £1.93
8	ST6378 703 4905 Available to backorder	Torsion spring right	£2.32 £1.93
9	ST6378 703 7500 Available to backorder	Locking screw	£20.36 £16.97
10	ST6378 704 3600 Available to backorder	Cover inside	£18.16 £15.13
11	ST6378 763 2901 Available to backorder	Left adjustment lever	£34.98 £29.15
12	ST6378 763 2906 Available to backorder	Right adjustment lever	£34.98 £29.15
13	ST6378 780 4900 Available to backorder	Swivel plate	£53.24 £44.37
14	ST6378 780 4905 Available to backorder	Swivel plate	£53.24 £44.37
15	ST6383 706 7000 Available to backorder	Rubber buffer	£2.42 £2.02
16	ST6392 760 4900 Available to backorder	Bearing bracket	£79.76 £66.47
17	ST9018 318 1280 Available to backorder	Hexagon head screw M6x16	£0.88 £0.73
18	ST9076 611 4431 Available to backorder	Screw IS-Ax6x20	£2.32 £1.93
19	ST9216 263 0900 Available to backorder	Hexagon nut M6	£0.54 £0.45
20	ST9216 263 1100 Available to backorder	Hexagon nut M8-8	£0.68 £0.57
21	ST9296 021 1608 Available to backorder	Washer 12x18x0.5	£0.66 £0.55
22	ST9460 624 1001 In stock	E-clip 10	£0.34 £0.28
23	ST9485 648 4175 Available to backorder	Cup spring 9x5.3x1	£1.54 £1.28
24	ST9503 003 5295 In stock	Grooved ball bearing 6002-2RS	£5.84 £4.87
25	ST9503 003 5297 In stock	Grooved ball bearing 6001-2TRS	£5.38 £4.48
26	ST9991 003 1045 Available to backorder	Cage nut M6	£1.32 £1.10
27	STWA70 600 0205 Available to backorder	Electric motor V/ Hz	£177.10 £147.58
28	STWA70 640 0100 Available to backorder	Gear head	£135.30 £112.75
29	STWA70 700 0415 Available to backorder	Wheel (Contains 6 + 24 + 32 + 33)	£62.70 £52.25
30	STWA70 706 3400 Available to backorder	Cover	£3.20 £2.67
31	ST9645 945 0755 Available to backorder	O-ring 9x18	£0.56 £0.47
34	STWA70 704 2700 Available to backorder	Retainer	£7.60 £6.33
35	ST9104 020 3053 Available to backorder	Self-tapping screw IS-P5x22	£0.88 £0.73
