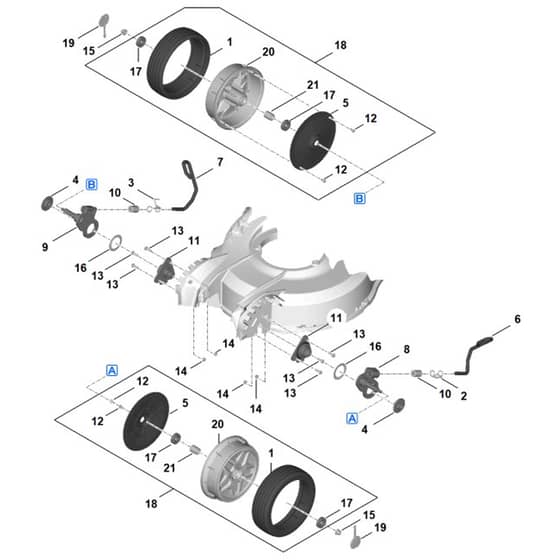

Stihl RMA7.0 RV - Front Height Adjustment, Front Wheel - Parts Diagram

Name: Stihl RMA7.0 RV - Front Height Adjustment, Front Wheel - Parts Diagram
SKU: rma7_0_rv_front_height_adjustment_front_wheel-group
Price: 0.43 GBP
Availability: InStock

Part No. rma7_0_rv_front_height_adjustment_front_wheel-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl RMA7.0 RV - Front Height Adjustment, Front Wheel - Parts Diagram

Description

Stihl RMA7.0 RV - Front Height Adjustment, Front Wheel - Parts Diagram

	Part No.	Details
1	ST6375 704 9520 In stock	Tyre	£35.96 £29.97
2	ST6378 703 4900 Available to backorder	Torsion spring left	£2.40 £2.00
3	ST6378 703 4905 Available to backorder	Torsion spring right	£2.50 £2.08
4	ST6378 703 7500 Available to backorder	Locking screw	£21.06 £17.55
5	ST6378 704 3610 Available to backorder	Cover inside	£16.06 £13.38
6	ST6378 763 2901 Available to backorder	Left adjustment lever	£36.19 £30.16
7	ST6378 763 2906 Available to backorder	Right adjustment lever	£36.19 £30.16
8	ST6378 780 4900 Available to backorder	Swivel plate	£55.08 £45.90
9	ST6378 780 4905 Available to backorder	Swivel plate	£55.08 £45.90
10	ST6383 706 7000 Available to backorder	Rubber buffer	£2.51 £2.09
11	ST6392 760 4900 Available to backorder	Bearing bracket	£79.80 £66.50
12	ST9039 488 0974 In stock	Self-tapping screw M5x12	£0.79 £0.66
13	ST9076 611 4431 Available to backorder	Screw IS-Ax6x20	£2.40 £2.00
14	ST9216 263 0900 Available to backorder	Hexagon nut M6	£0.52 £0.43
15	ST9216 263 1100 Available to backorder	Hexagon nut M8-8	£0.72 £0.60
16	ST9485 648 4175 Available to backorder	Cup spring 9x5.3x1	£1.60 £1.33
17	ST9503 003 5295 In stock	Grooved ball bearing 6002-2RS	£6.25 £5.21
18	STWA70 700 0400 Available to backorder	Wheel (Contains 1 + 5 + 12 + 17 + 20 + 21)	£54.62 £45.52
19	STWA70 706 3400 Available to backorder	Cover	£3.31 £2.76
