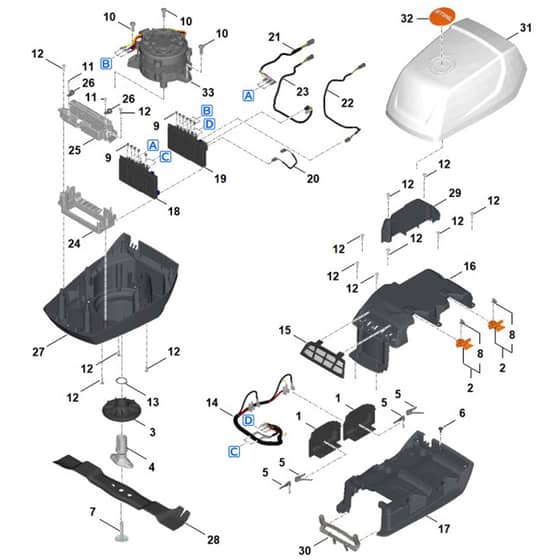

Stihl RMA7.0 RV - Engine, Blade - Parts Diagram

Name: Stihl RMA7.0 RV - Engine, Blade - Parts Diagram
SKU: rma7_0_rv_engine_blade-group
Price: 0.57 GBP
Availability: InStock

Part No. rma7_0_rv_engine_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl RMA7.0 RV - Engine, Blade - Parts Diagram

Description

Stihl RMA7.0 RV - Engine, Blade - Parts Diagram

	Part No.	Details
2	ST0000 430 9800 Available to backorder	Trigger interlock (Contains 8)	£8.09 £6.74
3	ST0000 607 3000 Available to backorder	Fan wheel	£10.01 £8.34
4	ST0000 702 5015 In stock	Blade bushing	£12.49 £10.41
5	ST0000 708 0800 Available to backorder	Spring	£1.60 £1.33
6	ST0000 951 1105 Available to backorder	Screw IS-P5x14-T27	£1.60 £1.33
8	ST0000 997 2201 In stock	Spring	£1.43 £1.19
9	ST9022 307 0610 Available to backorder	Spline screw IS-M4x6-4.8	£0.68 £0.57
10	ST9039 488 1835 Available to backorder	Self-tapping screw M8x25	£1.26 £1.05
12	ST9104 020 3053 Available to backorder	Self-tapping screw IS-P5x22	£0.91 £0.76
13	ST9455 621 3321 Available to backorder	Circlip 30x1.5	£1.26 £1.05
14	STWA70 430 2210 Available to backorder	Wiring harness	£40.28 £33.57
15	STWA70 140 4400 Available to backorder	Air filter	£7.86 £6.55
16	STWA70 403 3200 Available to backorder	Battery compartment	£100.68 £83.90
17	STWA70 403 3205 Available to backorder	Battery compartment	£96.24 £80.20
18	STWA70 430 1400 Available to backorder	Electronic module	£275.88 £229.90
19	STWA72 430 1400 Available to backorder	Electronic module	£275.88 £229.90
20	STWA70 430 2200 Available to backorder	Wiring harness	£6.25 £5.21
21	STWA70 430 2205 Available to backorder	Wiring harness	£27.66 £23.05
22	STWA70 430 2225 Available to backorder	Wiring harness	£18.11 £15.09
23	STWA70 430 2215 Available to backorder	Wiring harness	£23.32 £19.43
24	STWA70 432 9200 Available to backorder	Support	£6.60 £5.50
25	STWA70 432 9205 Available to backorder	Support	£6.60 £5.50
26	STWA70 448 1200 Available to backorder	Lead retainer	£2.63 £2.19
27	STWA70 701 1005 Available to backorder	Housing	£51.79 £43.16
28	STWA72 702 0100 Available to backorder	Blade	£48.14 £40.12
29	STWA70 706 0705 Available to backorder	Cover	£14.34 £11.95
30	STWA70 763 4100 Available to backorder	Hinge element	£8.20 £6.83
31	STWA70 780 2000 Available to backorder	Cover	£69.36 £57.80
33	STWA70 600 0200 Available to backorder	Electric motor	£300.96 £250.80
