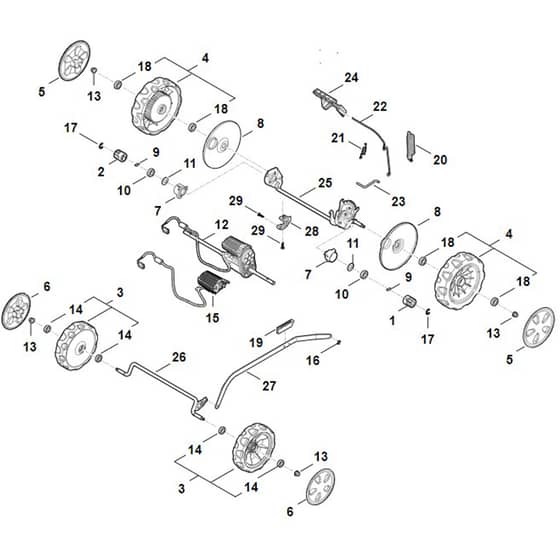

Stihl RMA453.3 PV - Chassis, Gear Box - Parts Diagram

Name: Stihl RMA453.3 PV - Chassis, Gear Box - Parts Diagram
SKU: rma453_3_pv_chassis_gear_box-group
Price: 0.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl RMA453.3 PV - Chassis, Gear Box - Parts Diagram

Description

Stihl RMA453.3 PV - Chassis, Gear Box - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST0000 640 2501 Available to backorder	Drive pinion	£14.30 £11.92
2	ST0000 640 2506 Available to backorder	Drive pinion	£14.30 £11.92
3	ST0000 700 0441 Available to backorder	Wheel (Contains 14)	£19.80 £16.50
4	ST0000 700 0445 Available to backorder	Wheel (Contains 18)	£46.86 £39.05
5	ST0000 704 0300 Available to backorder	Wheel cap	£7.16 £5.97
6	ST0000 704 0305 Available to backorder	Wheel cap	£6.38 £5.32
7	ST0000 704 3200 Available to backorder	Sleeve	£3.08 £2.57
8	ST0000 704 3600 Available to backorder	Cover	£16.06 £13.38
9	ST0000 704 8300 In stock	Freewheel key	£1.66 £1.38
10	ST9503 003 5297 In stock	Grooved ball bearing 6001-2TRS	£5.38 £4.48
11	ST6103 704 7910 Available to backorder	Protection disk	£1.10 £0.92
12	STWA42 640 0100 Available to backorder	Gear head	£191.40 £159.50
13	ST9216 263 1100 Available to backorder	Hexagon nut M8-8	£0.68 £0.57
15	STWA41 007 1890 Available to backorder	Service kit	£138.60 £115.50
17	ST9460 624 1001 In stock	E-clip 10	£0.34 £0.28
19	STWA41 703 4000 Available to backorder	Clip	£4.30 £3.58
20	STWA42 703 5100 Available to backorder	Tension spring	£16.60 £13.83
21	STWA41 703 5105 Available to backorder	Tension spring	£2.08 £1.73
22	STWA41 703 6700 Available to backorder	Lever	£9.90 £8.25
23	STWA41 763 6005 Available to backorder	Detent lever	£1.98 £1.65
24	STWA41 791 4800 Available to backorder	Trip lever	£2.20 £1.83
25	STWA42 700 2400 Available to backorder	Axle	£53.36 £44.47
26	STWA42 700 2405 Available to backorder	Axle	£37.84 £31.53
27	STWA42 703 8800 Available to backorder	Translation lever	£45.76 £38.13
28	STWA41 641 7100 Available to backorder	Holder	£4.72 £3.93
29	ST9104 020 3053 Available to backorder	Self-tapping screw IS-P5x22	£0.88 £0.73
