Stihl RMA448.3 V - Chassis, Gear Box - Parts Diagram

Description

Stihl RMA448.3 V - Chassis, Gear Box - Parts Diagram

	Part No.	Details
1	ST0000 640 2501 Available to backorder	Drive pinion	£14.80 £12.33
2	ST0000 640 2506 Available to backorder	Drive pinion	£14.80 £12.33
3	ST0000 700 0441 Available to backorder	Wheel (Contains 14)	£20.48 £17.07

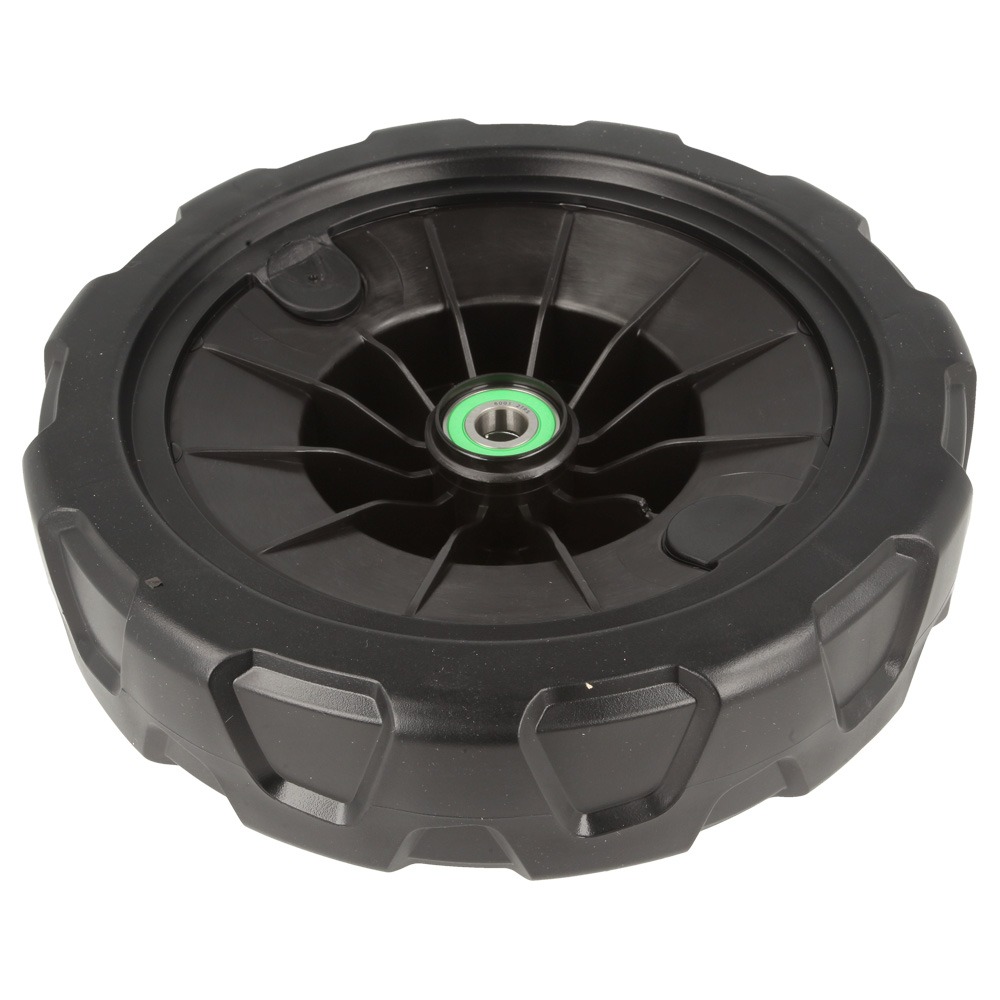

4	ST0000 700 0445 Available to backorder	Wheel (Contains 18)	£48.48 £40.40
5	ST0000 704 0300 Available to backorder	Wheel cap	£7.40 £6.17

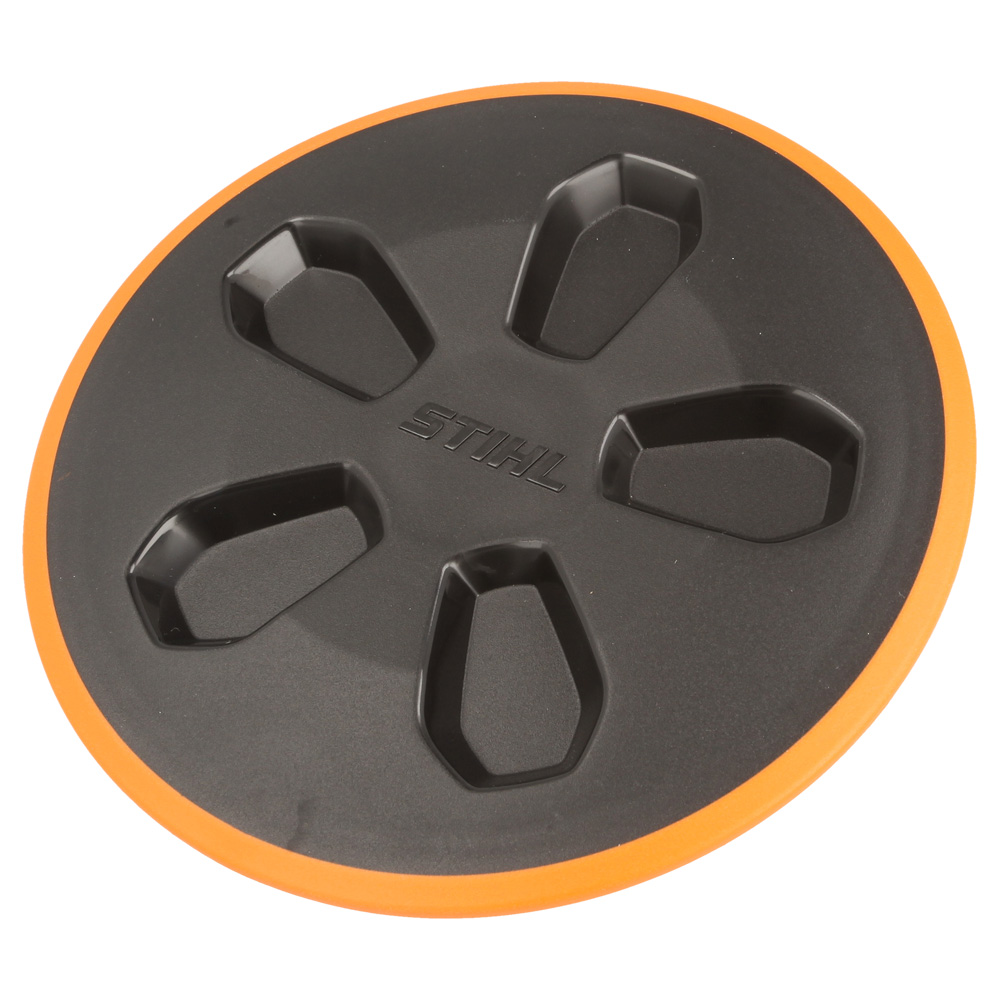

6	ST0000 704 0305 Available to backorder	Wheel cap	£6.60 £5.50
7	ST0000 704 3200 Available to backorder	Sleeve	£3.19 £2.66
8	ST0000 704 3600 Available to backorder	Cover	£16.61 £13.84
9	ST0000 704 8300 In stock	Freewheel key	£1.76 £1.47
10	ST9503 003 5297 Available to backorder	Grooved ball bearing 6001-2TRS	£5.77 £4.81
11	ST6103 704 7910 In stock	Protection disk	£1.19 £0.99
12	STWA41 640 0100 Available to backorder	Gear head	£117.72 £98.10
13	ST9216 263 1100 Available to backorder	Hexagon nut M8-8	£0.72 £0.60
15	STWA41 007 1890 Available to backorder	Service kit	£138.60 £115.50
17	ST9460 624 1001 In stock	E-clip 10	£0.37 £0.31
19	STWA41 703 4000 Available to backorder	Clip	£4.45 £3.71
20	STWA41 703 5100 Available to backorder	Tension spring	£17.17 £14.31
21	STWA41 703 5105 Available to backorder	Tension spring	£2.15 £1.79
22	STWA41 703 6700 Available to backorder	Lever	£10.24 £8.53
23	STWA41 763 6005 Available to backorder	Detent lever	£2.05 £1.71
24	STWA41 791 4800 Available to backorder	Trip lever	£2.28 £1.90
25	STWA41 700 2400 Available to backorder	Axle	£53.94 £44.95
26	STWA41 700 2405 Available to backorder	Axle	£37.45 £31.21
27	STWA41 703 8800 Available to backorder	Translation lever	£45.06 £37.55
28	STWA41 641 7100 Available to backorder	Holder	£4.88 £4.07
29	ST9104 020 3053 Available to backorder	Self-tapping screw IS-P5x22	£0.91 £0.76
