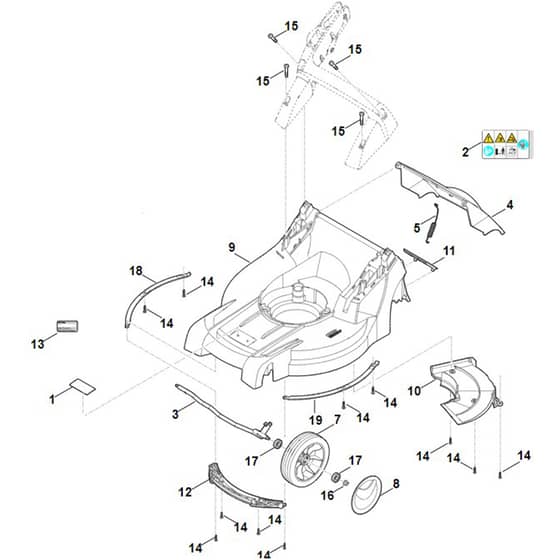

Stihl RMA448.2 VC - Housing, Front Axle - Parts Diagram

Name: Stihl RMA448.2 VC - Housing, Front Axle - Parts Diagram
SKU: rma448_2_vc_housing_front_axle-group
Price: 0.66 GBP
Availability: InStock

Part No. rma448_2_vc_housing_front_axle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl RMA448.2 VC - Housing, Front Axle - Parts Diagram

Description

Stihl RMA448.2 VC - Housing, Front Axle - Parts Diagram

	Part No.	Details
1	ST0000 967 1001 In stock	Plate	£4.85 £4.04
2	ST0000 967 6713 Available to backorder	Warning note	£2.15 £1.79
3	ST6338 700 2420 Available to backorder	Axle	£38.14 £31.78
4	ST6338 700 2722 Available to backorder	Flap assy. (Contains 2)	£28.09 £23.41
5	ST6338 703 5101 Available to backorder	Tension spring	£3.86 £3.22
7	ST6360 700 0400 In stock	Wheel assy. 180 (Contains 17)	£19.46 £16.22
8	ST6340 704 0301 Available to backorder	Wheel cap	£5.42 £4.52
9	ST6358 700 8591 Available to backorder	Housing (Contains 1+10+11)	£156.24 £130.20
10	ST6358 706 0706 Available to backorder	Cover	£26.74 £22.28
11	ST6338 706 0730 Available to backorder	Cover	£4.20 £3.50
12	ST6358 706 0720 Available to backorder	Axle cover	£12.64 £10.53
13	ST0000 967 3454 Available to backorder	Warning sign with machine number	£2.15 £1.79
14	ST9104 007 4289 In stock	Self-tapping screw P5x20	£0.95 £0.79
15	ST9104 007 9990 Available to backorder	Self-tapping screw P8x40	£1.46 £1.22
16	ST9216 261 1100 In stock	Hexagon nut M8	£0.79 £0.66
17	ST9503 003 5297 Available to backorder	Grooved ball bearing 6001-2TRS	£5.77 £4.81
18	ST6358 703 6305 Available to backorder	Right strip	£14.57 £12.14
19	ST6358 703 6300 Available to backorder	Left strip	£14.44 £12.03
