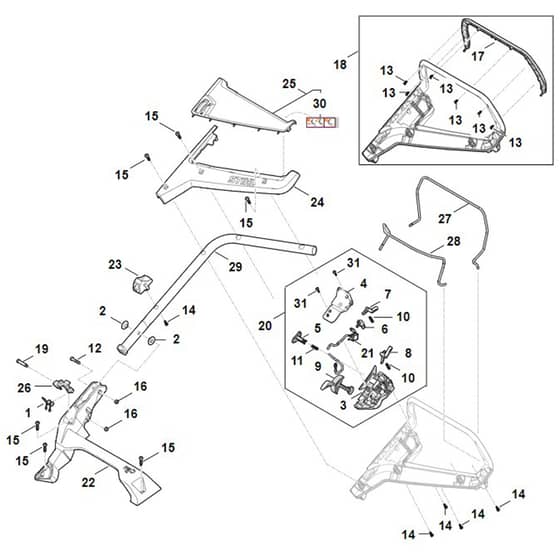

Stihl RMA443.3 V - Handle - Parts Diagram

Name: Stihl RMA443.3 V - Handle - Parts Diagram
SKU: rma443_3_v_handle-group
Price: 0.4 GBP
Availability: InStock

Part No. rma443_3_v_handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl RMA443.3 V - Handle - Parts Diagram

Description

Stihl RMA443.3 V - Handle - Parts Diagram

	Part No.	Details
1	ST0000 703 4900 Available to backorder	Torsion spring	£2.15 £1.79
2	ST0000 710 7300 Available to backorder	Sleeve montiert	£7.61 £6.34
3	STWA41 432 5005 Available to backorder	Lower house half (switch box)	£24.12 £20.10
4	STWA41 432 5105 Available to backorder	Upper house half (switch box)	£10.69 £8.91
5	ST6338 435 0205 Available to backorder	Button	£4.45 £3.71
6	ST6338 435 2205 Available to backorder	Control spring	£3.31 £2.76
7	ST6338 435 2400 In stock	Control lever (motorstop mount)	£5.33 £4.44
8	ST6338 435 2405 Available to backorder	Control lever (self-propulsion mount)	£5.23 £4.36
9	ST6338 435 2800 Available to backorder	Detent lever (Vario)	£7.40 £6.17
10	ST6338 435 8701 Available to backorder	Spring	£1.37 £1.14
11	ST6338 435 8705 Available to backorder	Spring	£1.14 £0.95
12	ST9037 319 1901 In stock	Pan head screw M8x40	£1.46 £1.22
13	ST9104 020 0660 Available to backorder	Self-tapping screw IS-P4x12	£0.79 £0.66
14	ST9104 020 3053 Available to backorder	Self-tapping screw IS-P5x22	£0.91 £0.76
15	ST9104 020 6030 Available to backorder	Self-tapping screw IS-P8x30	£1.37 £1.14
16	ST9214 261 1105 In stock	Lock nut M8	£0.48 £0.40
17	STWA21 706 3600 Available to backorder	Bumper	£24.48 £20.40
18	STWA21 780 3000 Available to backorder	Handle upper section (Contains 13 + 17)	£56.09 £46.74
19	STWA40 716 6800 Available to backorder	Collar screw	£8.98 £7.48
20	STWA41 430 1101 Available to backorder	Switchbox (Contains 3 - 11 + 21 + 31)	£51.20 £42.67
21	STWA41 440 3010 Available to backorder	Wiring harness	£9.56 £7.97
22	STWA40 703 6201 Available to backorder	Bracket	£106.20 £88.50
23	STWA41 706 0100 Available to backorder	Lock	£10.24 £8.53
24	STWA41 706 0730 Available to backorder	Cover	£24.12 £20.10
25	STWA41 706 0735 Available to backorder	Cover (Contains 30)	£17.42 £14.52
26	STWA41 763 6000 Available to backorder	Detent lever	£39.49 £32.91
27	STWA41 764 0210 Available to backorder	Switch lever	£21.52 £17.93
28	STWA41 764 0215 Available to backorder	Switch lever	£21.26 £17.72
29	STWA41 780 2800 Available to backorder	Handle lower section	£44.15 £36.79
30	STWA41 967 4405 Available to backorder	Sticker	£2.15 £1.79
