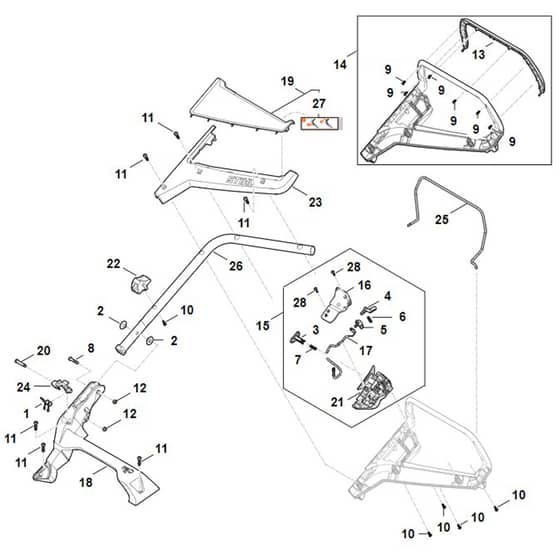

Stihl RMA443.3 - Handle - Parts Diagram

Name: Stihl RMA443.3 - Handle - Parts Diagram
SKU: rma443_3_handle-group
Price: 0.4 GBP
Availability: InStock

Part No. rma443_3_handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Stihl RMA443.3 - Handle - Parts Diagram

	Part No.	Details
1	ST0000 703 4900 Available to backorder	Torsion spring	£2.15 £1.79
2	ST0000 710 7300 Available to backorder	Sleeve montiert	£7.61 £6.34
3	ST6338 435 0205 Available to backorder	Button	£4.45 £3.71
4	ST6338 435 2205 Available to backorder	Control spring	£3.31 £2.76
5	ST6338 435 2400 In stock	Control lever (motorstop mount)	£5.33 £4.44
6	ST6338 435 8701 Available to backorder	Spring	£1.37 £1.14
7	ST6338 435 8705 Available to backorder	Spring	£1.14 £0.95
8	ST9037 319 1901 In stock	Pan head screw M8x40	£1.46 £1.22
9	ST9104 020 0660 Available to backorder	Self-tapping screw IS-P4x12	£0.79 £0.66
10	ST9104 020 3053 Available to backorder	Self-tapping screw IS-P5x22	£0.91 £0.76
11	ST9104 020 6030 Available to backorder	Self-tapping screw IS-P8x30	£1.37 £1.14
12	ST9214 261 1105 In stock	Lock nut M8	£0.48 £0.40
13	STWA21 706 3600 Available to backorder	Bumper	£24.48 £20.40
14	STWA21 780 3000 Available to backorder	Handle upper section (Contains 9 + 13)	£56.09 £46.74
15	STWA40 430 1100 Available to backorder	Switchbox (Contains 3 - 6 + 16 + 17 + 21 + 28)	£43.92 £36.60
16	STWA40 432 5100 Available to backorder	Upper house half (switch box)	£11.28 £9.40
17	STWA40 440 3000 Available to backorder	Wiring harness	£28.45 £23.71
18	STWA40 703 6201 Available to backorder	Bracket	£106.20 £88.50
19	STWA40 706 0706 Available to backorder	Cover (Contains 27)	£17.17 £14.31
20	STWA40 716 6800 Available to backorder	Collar screw	£8.98 £7.48
21	STWA41 432 5005 Available to backorder	Lower house half (switch box)	£24.12 £20.10
22	STWA41 706 0100 Available to backorder	Lock	£10.24 £8.53
23	STWA41 706 0730 Available to backorder	Cover	£24.12 £20.10
24	STWA41 763 6000 Available to backorder	Detent lever	£39.49 £32.91
25	STWA41 764 0210 Available to backorder	Switch lever	£21.52 £17.93
26	STWA41 780 2800 Available to backorder	Handle lower section	£44.15 £36.79
27	STWA41 967 4400 Available to backorder	Sticker	£2.15 £1.79
