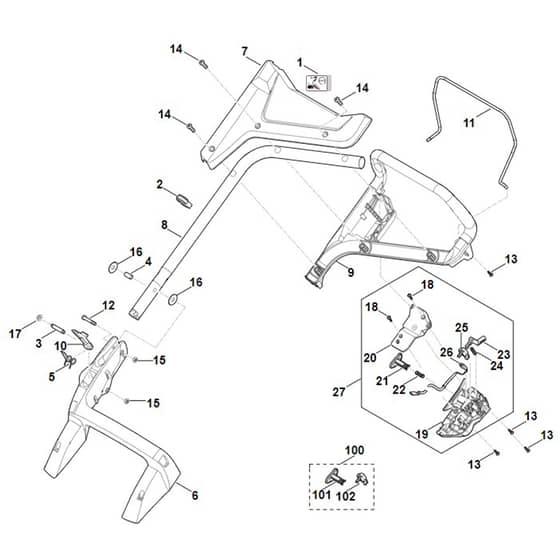

Stihl RMA443.2 C - Handle - Parts Diagram

Name: Stihl RMA443.2 C - Handle - Parts Diagram
SKU: rma443_2_c_handle-group
Price: 0.4 GBP
Availability: InStock

Part No. rma443_2_c_handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl RMA443.2 C - Handle - Parts Diagram

Description

Stihl RMA443.2 C - Handle - Parts Diagram

	Part No.	Details
1	ST6338 967 4420 Available to backorder	Label	£2.15 £1.79
2	ST6338 703 3105 Available to backorder	Cable Clips	£3.31 £2.76
3	ST6338 703 3700 Available to backorder	Screw	£4.55 £3.79
4	ST6338 703 3800 Available to backorder	Sleeve	£5.92 £4.93
5	ST6338 703 4900 Available to backorder	Torsion spring	£1.94 £1.62
6	ST6338 703 6206 Available to backorder	Bracket	£97.32 £81.10
7	ST6338 706 0752 Available to backorder	Cover (panel)	£30.04 £25.03
8	ST6338 780 2800 Available to backorder	Lower handlebar	£76.44 £63.70
9	ST6338 763 5011 Available to backorder	Upper handlebar	£61.45 £51.21
10	ST6338 763 6010 Available to backorder	Interlock lever	£28.22 £23.52
11	ST6338 764 0212 Available to backorder	Switch lever	£21.06 £17.55
12	ST9037 319 1901 In stock	Pan head screw M8x40	£1.46 £1.22
13	ST9104 007 4291 Available to backorder	Self-tapping screw P5x25	£1.03 £0.86
14	ST9104 007 9985 Available to backorder	Self-tapping screw P8x30	£1.37 £1.14
15	ST9214 261 1105 In stock	Lock nut M8	£0.48 £0.40
16	ST9485 648 2044 In stock	Cup spring 34x122x15	£1.31 £1.09
17	ST9216 261 1100 In stock	Hexagon nut M8	£0.79 £0.66
18	ST9104 007 4289 In stock	Self-tapping screw P5x20	£0.95 £0.79
19	STWA41 432 5005 Available to backorder	Lower house half (switch box)	£24.12 £20.10
20	STWA40 432 5100 Available to backorder	Upper house half (switch box)	£11.28 £9.40
21	ST6338 435 0205 Available to backorder	Button	£4.45 £3.71
22	ST6338 435 8705 Available to backorder	Spring	£1.14 £0.95
23	ST6338 435 2400 In stock	Control lever (motorstop mount)	£5.33 £4.44
24	ST6338 435 8701 Available to backorder	Spring	£1.37 £1.14
24	ST6338 435 8700 Available to backorder	Spring	£2.17 £1.81
25	ST6338 435 2205 Available to backorder	Control spring	£3.31 £2.76
26	ST6338 440 1920 Available to backorder	Lead	£34.82 £29.02
27	ST6338 430 1107 Available to backorder	Switch housing assembly (Contains 18-26)	£55.43 £46.19
27	ST6338 430 1110 Available to backorder	Switch housing assembly (Contains 18-26)	£43.69 £36.41
100	ST6338 007 1005 Available to backorder	Switching spring/button set	£5.00 £4.17
101	ST6338 435 0200 Available to backorder	Button	£4.45 £3.71
102	ST6338 435 2200 Available to backorder	Control spring	£2.54 £2.12
