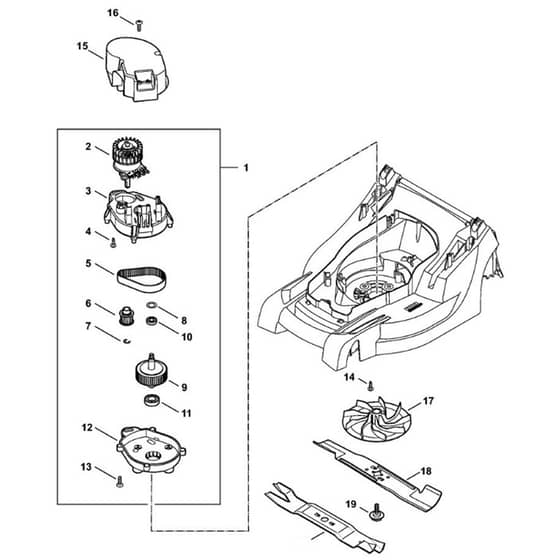

Stihl RMA410 C - Electric Motor, Blade - Parts Diagram

Name: Stihl RMA410 C - Electric Motor, Blade - Parts Diagram
SKU: rma410_c_electric_motor_blade-group
Price: 0.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl RMA410 C - Electric Motor, Blade - Parts Diagram

Description

Stihl RMA410 C - Electric Motor, Blade - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST6338 600 0210 Available to backorder	Electric motor with gearbox (Contains 2 - 13)	£273.00 £227.50
2	ST1250 600 0200 Available to backorder	Electric motor	£182.60 £152.17
3	ST6320 641 0300 Available to backorder	Gear housing	£53.14 £44.28
5	ST6338 764 0901 Available to backorder	Toothed belt	£24.10 £20.08
6	ST6320 760 7500 Available to backorder	Toothed-belt pulley	£16.06 £13.38
7	ST9460 624 0801 In stock	E-clip 8x13	£0.34 £0.28
8	ST9298 021 3935 Available to backorder	Spring washer 24	£0.76 £0.63
9	ST6338 700 3500 Available to backorder	Shaft assy. (Contains 45606)	£50.06 £41.72
10	ST9503 003 9860 Available to backorder	Deep-groove ball bearing 609-2RS	£11.98 £9.98
11	ST9503 003 5330 Available to backorder	Grooved ball bearing 6003-2RS	£7.26 £6.05
12	ST6320 641 0310 Available to backorder	Gear housing	£44.12 £36.77
13	ST9074 477 4130 Available to backorder	Screw IS P5x16	£0.88 £0.73
14	ST0000 951 1100 In stock	Screw	£1.54 £1.28
15	ST6320 606 0100 Available to backorder	Fan shroud	£17.06 £14.22
16	ST9104 003 8734 Available to backorder	Self-tapping screw P4x16	£0.76 £0.63
17	ST6310 702 5000 Available to backorder	Blade bushing	£10.24 £8.53
18	ST6338 702 0111 Available to backorder	Blade	£28.60 £23.83
19	ST6310 760 2800 Available to backorder	Screw	£6.72 £5.60
