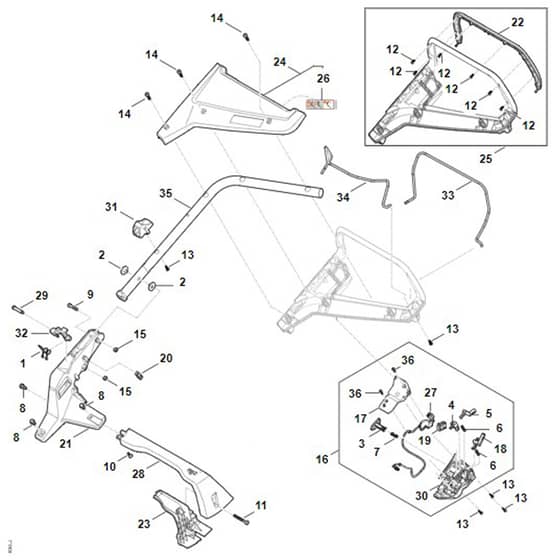

Stihl RMA248.3 T - Handle - Parts Diagram

Name: Stihl RMA248.3 T - Handle - Parts Diagram
SKU: rma248_3_t_handle-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl RMA248.3 T - Handle - Parts Diagram

Description

Stihl RMA248.3 T - Handle - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST0000 703 4900 Available to backorder	Torsion spring	£2.08 £1.73
2	ST0000 710 7300 Available to backorder	Sleeve montiert	£7.36 £6.13
3	ST6338 435 0205 Available to backorder	Button	£4.30 £3.58
4	ST6338 435 2205 Available to backorder	Control spring	£3.20 £2.67
5	ST6338 435 2400 Available to backorder	Control lever (motorstop mount)	£4.96 £4.13
6	ST6338 435 8701 Available to backorder	Spring	£1.32 £1.10
7	ST6338 435 8705 Available to backorder	Spring	£1.10 £0.92
8	ST9018 318 1801 Available to backorder	Hexagon head screw M8x20	£1.00 £0.83
9	ST9037 319 1901 In stock	Pan head screw M8x40	£1.42 £1.18
10	ST9039 488 1289 Available to backorder	Self-tapping screw M6x25	£1.00 £0.83
11	ST9104 007 9995 Available to backorder	Self-tapping screw P8x65	£1.98 £1.65
12	ST9104 020 0660 Available to backorder	Self-tapping screw IS-P4x12	£0.76 £0.63
13	ST9104 020 3053 Available to backorder	Self-tapping screw IS-P5x22	£0.88 £0.73
14	ST9104 020 6030 Available to backorder	Self-tapping screw IS-P8x30	£1.32 £1.10
15	ST9214 261 1105 In stock	Lock nut M8	£0.48 £0.40
16	STWA21 430 1100 Available to backorder	Switchbox (Contains 3 - 7 + 17 - 19 + 27 + 30 + 36)	£46.10 £38.42
17	STWA21 432 5100 Available to backorder	Housing top	£10.78 £8.98
18	STWA21 435 2400 Available to backorder	Switch lever	£4.72 £3.93
19	STWA21 435 6000 Available to backorder	Clamp	£3.40 £2.83
20	STWA21 703 3100 Available to backorder	Cable clip	£2.74 £2.28
21	STWA21 703 6200 Available to backorder	Bracket	£86.36 £71.97
22	STWA21 706 3600 Available to backorder	Bumper	£23.66 £19.72
23	STWA21 764 0105 Available to backorder	Handle molding	£18.70 £15.58
24	STWA21 780 2005 Available to backorder	Cover (Contains 26)	£45.76 £38.13
25	STWA21 780 3000 Available to backorder	Handle upper section (Contains 12 + 22)	£54.22 £45.18
26	STWA21 967 4400 Available to backorder	Sticker	£2.08 £1.73
27	STWA22 440 1900 Available to backorder	Lead	£25.64 £21.37
28	STWA21 764 0100 Available to backorder	Handle molding	£20.90 £17.42
29	STWA40 716 6800 Available to backorder	Collar screw	£8.68 £7.23
30	STWA41 432 5005 Available to backorder	Lower house half (switch box)	£23.32 £19.43
31	STWA41 706 0100 Available to backorder	Lock	£9.90 £8.25
32	STWA41 763 6000 Available to backorder	Detent lever	£38.18 £31.82
33	STWA41 764 0210 Available to backorder	Switch lever	£20.80 £17.33
34	STWA41 764 0215 Available to backorder	Switch lever	£20.56 £17.13
35	STWA41 780 2800 Available to backorder	Handle lower section	£42.68 £35.57
