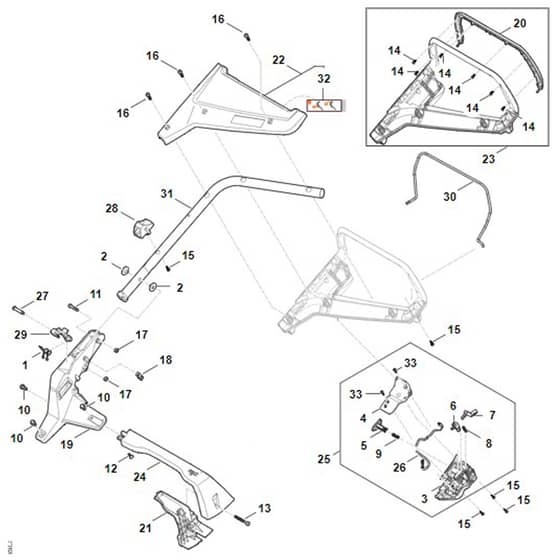

Stihl RMA248.3 - Handle - Parts Diagram

Name: Stihl RMA248.3 - Handle - Parts Diagram
SKU: rma248_3_handle-group
Price: 0.4 GBP
Availability: InStock

Part No. rma248_3_handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Stihl RMA248.3 - Handle - Parts Diagram

	Part No.	Details
1	ST0000 703 4900 Available to backorder	Torsion spring	£2.15 £1.79
2	ST0000 710 7300 Available to backorder	Sleeve montiert	£7.61 £6.34
3	STWA41 432 5005 Available to backorder	Lower house half (switch box)	£24.12 £20.10
4	STWA40 432 5100 Available to backorder	Upper house half (switch box)	£11.28 £9.40
5	ST6338 435 0205 Available to backorder	Button	£4.45 £3.71
6	ST6338 435 2205 Available to backorder	Control spring	£3.31 £2.76
7	ST6338 435 2400 In stock	Control lever (motorstop mount)	£5.33 £4.44
8	ST6338 435 8701 Available to backorder	Spring	£1.37 £1.14
9	ST6338 435 8705 Available to backorder	Spring	£1.14 £0.95
10	ST9018 318 1801 Available to backorder	Hexagon head screw M8x20	£1.03 £0.86
11	ST9037 319 1901 In stock	Pan head screw M8x40	£1.46 £1.22
12	ST9039 488 1289 Available to backorder	Self-tapping screw M6x25	£1.03 £0.86
13	ST9104 007 9995 Available to backorder	Self-tapping screw P8x65	£2.05 £1.71
14	ST9104 020 0660 Available to backorder	Self-tapping screw IS-P4x12	£0.79 £0.66
15	ST9104 020 3053 Available to backorder	Self-tapping screw IS-P5x22	£0.91 £0.76
16	ST9104 020 6030 Available to backorder	Self-tapping screw IS-P8x30	£1.37 £1.14
17	ST9214 261 1105 In stock	Lock nut M8	£0.48 £0.40
18	STWA21 703 3100 Available to backorder	Cable clip	£2.83 £2.36
19	STWA21 703 6200 Available to backorder	Bracket	£86.40 £72.00
20	STWA21 706 3600 Available to backorder	Bumper	£24.48 £20.40
21	STWA21 764 0105 Available to backorder	Handle molding	£19.34 £16.12
22	STWA21 780 2000 Available to backorder	Cover (Contains 32)	£47.34 £39.45
23	STWA21 780 3000 Available to backorder	Handle upper section (Contains 14 + 20)	£56.09 £46.74
24	STWA21 764 0100 Available to backorder	Handle molding	£21.62 £18.02
25	STWA40 430 1100 Available to backorder	Switchbox	£43.92 £36.60
26	STWA40 440 3000 Available to backorder	Wiring harness (Contains 3 - 9 + 25 + 33)	£28.45 £23.71
27	STWA40 716 6800 Available to backorder	Collar screw	£8.98 £7.48
28	STWA41 706 0100 Available to backorder	Lock	£10.24 £8.53
29	STWA41 763 6000 Available to backorder	Detent lever	£39.49 £32.91
30	STWA41 764 0210 Available to backorder	Switch lever	£21.52 £17.93
31	STWA41 780 2800 Available to backorder	Handle lower section	£44.15 £36.79
32	STWA41 967 4400 Available to backorder	Sticker	£2.15 £1.79
