Stihl RMA239.1 - Chassis, Height Adjustment - Parts Diagram

Name: Stihl RMA239.1 - Chassis, Height Adjustment - Parts Diagram
SKU: rma239_1_chassis_height_adjustment-group
Price: 2.19 GBP
Availability: InStock

Part No. rma239_1_chassis_height_adjustment-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl RMA239.1 - Chassis, Height Adjustment - Parts Diagram

Description

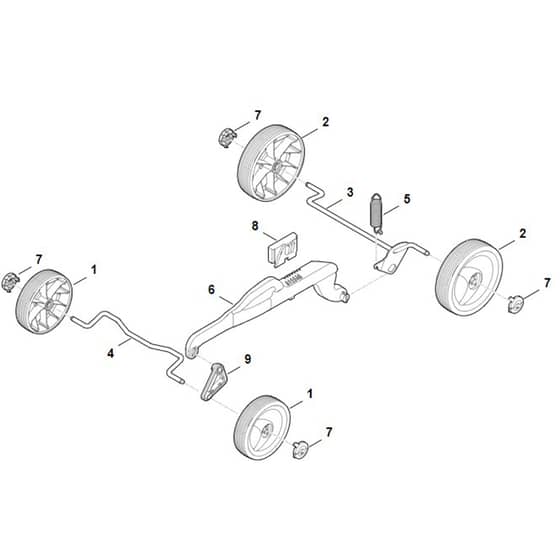

Stihl RMA239.1 - Chassis, Height Adjustment - Parts Diagram

	Part No.	Details
1	ST6320 700 0406 Available to backorder	Wheel assy. 150	£11.51 £9.59
2	ST6320 700 0416 Available to backorder	Wheel assy. 180	£14.23 £11.86
3	ST6320 700 2400 Available to backorder	Axle	£34.37 £28.64
4	ST6320 703 0900 Available to backorder	Axle	£17.86 £14.88
5	ST6320 703 5121 Available to backorder	Tension spring	£8.77 £7.31
6	ST6320 703 8805 Available to backorder	Translation lever	£44.15 £36.79
7	ST6320 704 0300 Available to backorder	Wheel cap	£2.63 £2.19
8	ST6320 708 6200 Available to backorder	Notched quadrant	£4.00 £3.33
9	ST6320 763 2505 Available to backorder	Swivel plate	£5.92 £4.93
