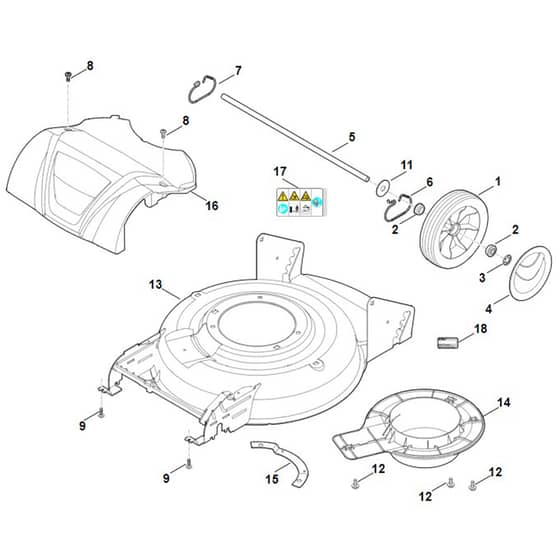

Stihl RMA2.2 RV - Housing, Rear Axle - Parts Diagram

Name: Stihl RMA2.2 RV - Housing, Rear Axle - Parts Diagram
SKU: rma2_2_rv_housing_rear_axle-group
Price: 0.63 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl RMA2.2 RV - Housing, Rear Axle - Parts Diagram

Description

Stihl RMA2.2 RV - Housing, Rear Axle - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST6105 700 0491 Available to backorder	Wheel (Contains 2)	£22.44 £18.70
2	ST9503 003 9011 Available to backorder	Grooved ball bearing 27M-36x12	£6.04 £5.03
3	ST6106 704 5110 Available to backorder	Retaining ring	£1.10 £0.92
4	ST6375 704 0301 In stock	Wheel cap	£6.60 £5.50
5	ST6357 703 0901 Available to backorder	Axle	£20.02 £16.68
6	ST6357 708 0815 Available to backorder	Spring left	£2.54 £2.12
7	ST6357 708 0810 Available to backorder	Spring right	£2.74 £2.28
8	ST9039 488 0974 In stock	Self-tapping screw M5x12	£0.76 £0.63
9	ST9104 007 4270 In stock	Self-tapping screw P5x16	£0.88 £0.73
12	ST9039 488 9072 Available to backorder	Screw 10-32x3/8"	£1.42 £1.18
13	ST6357 700 8556 Available to backorder	Housing (Contains 17)	£157.30 £131.08
14	ST6357 706 0706 Available to backorder	Cover	£17.06 £14.22
15	ST6357 706 1100 Available to backorder	Sheet metal holder	£15.94 £13.28
16	ST6357 706 2110 Available to backorder	Shroud	£36.20 £30.17
17	ST0000 967 6713 Available to backorder	Warning note	£2.08 £1.73
18	ST0000 967 3454 Available to backorder	Warning sign with machine number	£2.08 £1.73
