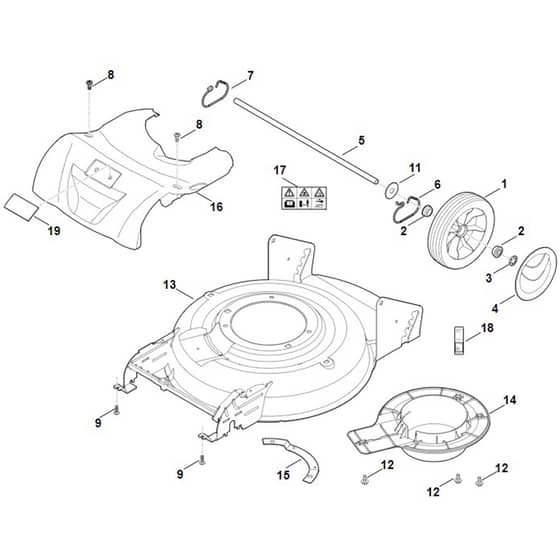

Stihl RMA2.1 RP - Housing, Rear Axle - Parts Diagram

Description

Stihl RMA2.1 RP - Housing, Rear Axle - Parts Diagram

	Part No.	Details
1	ST6105 700 0491 Available to backorder	Wheel (Contains 2)	£23.21 £19.34
2	ST9503 003 9011 Available to backorder	Grooved ball bearing 27M-36x12	£6.25 £5.21
3	ST6106 704 5110 Available to backorder	Retaining ring	£1.14 £0.95
4	ST6375 704 0301 In stock	Wheel cap	£7.08 £5.90
5	ST6357 703 0901 Available to backorder	Axle	£20.71 £17.26
6	ST6357 708 0815 Available to backorder	Spring left	£2.63 £2.19
7	ST6357 708 0810 Available to backorder	Spring right	£2.83 £2.36
8	ST9039 488 0974 In stock	Self-tapping screw M5x12	£0.79 £0.66
9	ST9104 007 4270 In stock	Self-tapping screw P5x16	£0.95 £0.79
12	ST9039 488 9072 In stock	Screw 10-32x3/8"	£1.46 £1.22
13	ST6357 700 8555 Available to backorder	Housing (Contains 17)	£269.40 £224.50
14	ST6357 706 0705 Available to backorder	Cover	£17.98 £14.98
15	ST6357 706 1100 Available to backorder	Sheet metal holder	£16.49 £13.74
16	ST6357 700 2101 Available to backorder	Shroud (Contains 19)	£47.34 £39.45
17	ST0000 967 4441 Available to backorder	Warning note	£2.15 £1.79
19	ST0000 967 1001 In stock	Plate	£4.85 £4.04
