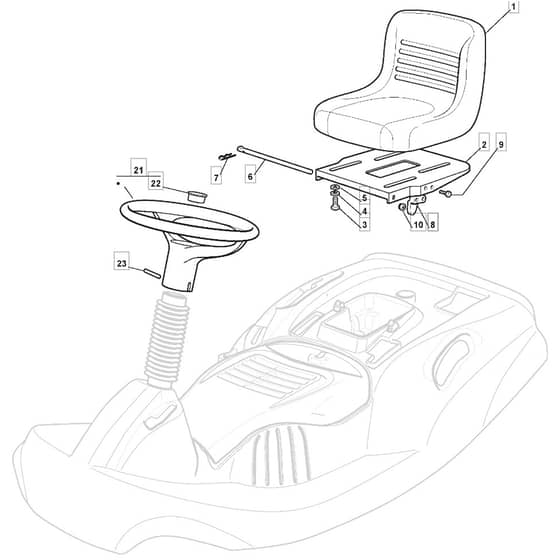

RM70 25 - 2010 - 2T0030233/MF0 - Mountfield Ride On Mower Seat Diagram

Description

Mountfield RM70 25 Parts Diagram

Product Name - RM 70.25

Model Year - 2010

Model Type - ELV 63

Art.N - 2T0030233/MF0

Be the first to review this product

0 product questions

	Part No.	Details
1	MO125722471/0 In stock	Seat	£190.04 £158.37
3	MO112793101/0 Available to backorder	Screw	£1.48 £1.23
4	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
5	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
6	MO127864052/1 Available to backorder	Seat Fulcrum Rod	£6.62 £5.52
7	MO124487997/0 Available to backorder	Cotter Pin	£1.55 £1.29
8	MO327063021/1 Available to backorder	Cam	£7.85 £6.54
9	MO112789100/0 Available to backorder	Screw	£1.55 £1.29
10	MO112154330/0 In stock	Nut	£1.55 £1.29
22	MO325120230/0 Available to backorder	Cover	£3.10 £2.58
23	MO112620305/0 Available to backorder	Spirol Pin 6 X 55	£1.82 £1.52
