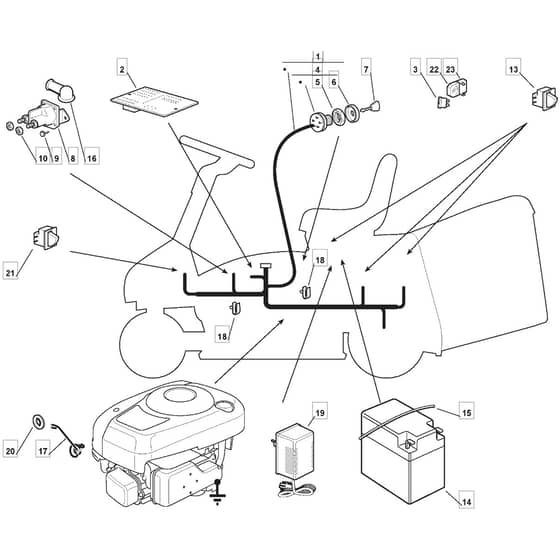

RM70 25 - 2010 - 2T0030233/MF0 - Mountfield Ride On Mower Electrics Diagram

Description

Mountfield RM70 25 Parts Diagram

Product Name - RM 70.25

Model Year - 2010

Model Type - ELV 63

Art.N - 2T0030233/MF0

	Part No.	Details
2	MO127722354/2 In stock	Electronic Card	£100.45 £83.71
3	MO133340040/0 Available to backorder	Fuse 10 A	£2.24 £1.87
4	MO118450065/1 Available to backorder	Starting Switch	£38.00 £31.67
5	MO118400861/0 Available to backorder	Screwed Ring	£6.05 £5.04
6	MO118565351/0 Available to backorder	Screwed Ring Protection	£7.02 £5.85
7	MO118210016/1 Available to backorder	Starting Key	£12.80 £10.67
8	MO118736112/0 In stock	Starter Relay	£38.00 £31.67
9	MO112735110/0 Available to backorder	Screw	£1.63 £1.36
10	MO9743-5121-32 Available to backorder	Nut	£1.46 £1.22
13	MO119410622/1 In stock	Microswitch	£6.64 £5.53
15	MO127430572/0 Available to backorder	Spring	£1.84 £1.53
16	MO118564861/2 In stock	Protection	£6.77 £5.64
17	MO127430557/0 Available to backorder	Spring	£3.52 £2.93
23	MO133500007/0 Available to backorder	Fuse Holder	£7.31 £6.09
