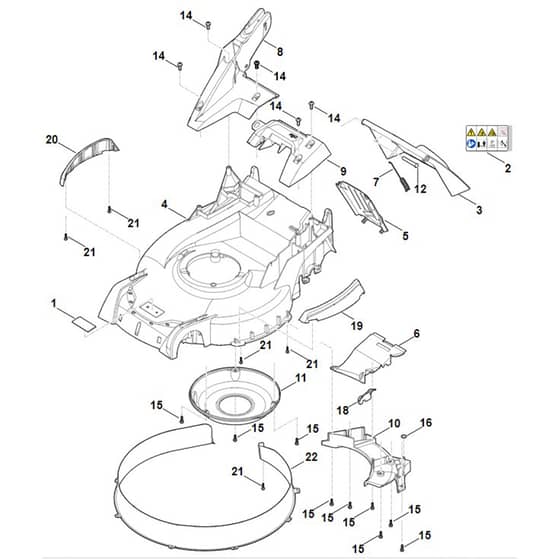

Stihl RM655.1 RS - Housing - Parts Diagram

Description

	Part No.	Details
1	ST0000 967 1001 Available to backorder	Plate	£4.52 £3.77
2	ST0000 967 4416 Available to backorder	Warning note	£2.32 £1.93
3	ST6364 700 2702 In stock	Flap (Contains 2)	£39.82 £33.18
4	ST6374 700 8511 Available to backorder	Housing (Contains 1)	£364.80 £304.00
5	ST6364 701 3610 Available to backorder	Cover	£12.98 £10.82
6	ST6374 780 4400 Available to backorder	Guiding plate (with support) (Contains 18)	£46.96 £39.13
7	ST6364 703 5110 In stock	Tension spring	£4.18 £3.48
8	ST6364 703 6205 Available to backorder	Bracket	£90.76 £75.63
9	ST6364 703 6600 Available to backorder	Knob	£19.48 £16.23
10	ST6374 780 2010 Available to backorder	Cover (Contains 16)	£57.76 £48.13
11	ST6364 706 0740 Available to backorder	Cover	£19.36 £16.13
12	ST6340 706 5901 Available to backorder	Bolt	£5.50 £4.58
14	ST9039 488 1801 Available to backorder	Self-tapping screw M8x20	£1.00 £0.83
15	ST9070 010 4430 Available to backorder	Bolt with inner hex TT6x20	£0.88 £0.73
16	ST6364 708 9300 Available to backorder	Washer	£1.10 £0.92
18	ST6364 763 3800 Available to backorder	Support	£0.48 £0.40
19	ST6374 706 7300 Available to backorder	Left protector strip	£15.28 £12.73
20	ST6374 706 7305 Available to backorder	Right protector strip	£15.28 £12.73
21	ST9076 611 4290 Available to backorder	Screw IS P5x20	£0.88 £0.73
22	ST6374 701 4300 Available to backorder	Insert	£105.60 £88.00
