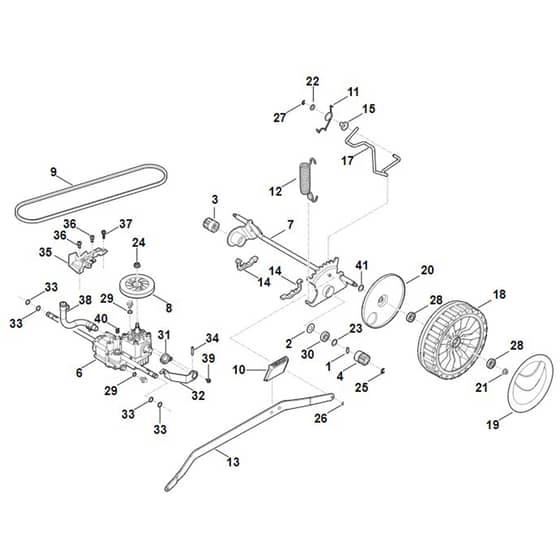

Stihl RM655.0 YS - Shaft, Gear Box - Parts Diagram

Description

Stihl RM655.0 YS - Shaft, Gear Box - Parts Diagram

	Part No.	Details
1	ST0000 704 8300 In stock	Freewheel key	£1.76 £1.47
2	ST6103 704 7910 In stock	Protection disk	£1.19 £0.99
3	ST6105 704 7400 In stock	Pinion	£14.75 £12.29
4	ST6105 704 7410 In stock	Pinion	£14.95 £12.46
7	ST6364 700 2410 Available to backorder	Rear axle	£63.24 £52.70
8	ST6378 643 1500 Available to backorder	V-belt pulley	£37.78 £31.48
9	ST6378 704 2100 Available to backorder	V-belt	£29.03 £24.19
10	ST6364 703 4000 Available to backorder	Clips (cutting height indicator)	£5.23 £4.36
11	ST6364 703 4900 Available to backorder	Torsion spring	£2.15 £1.79
12	ST6364 703 5100 Available to backorder	Tension spring	£20.59 £17.16
13	ST6374 703 8800 Available to backorder	Translation lever	£61.80 £51.50
14	ST6364 704 1210 Available to backorder	Rear axle bracket	£4.19 £3.49
15	ST6364 763 3010 Available to backorder	Bearing bushing	£6.37 £5.31
17	ST6364 763 6000 Available to backorder	Interlock lever	£22.20 £18.50
18	ST6375 700 0402 Available to backorder	Wheel assy. 230 (Contains 20+28)	£49.16 £40.97
18	ST6374 700 0400 Available to backorder	Wheel assy. 230 (Contains 20+28)	£51.20 £42.67
19	ST6375 704 0311 Available to backorder	Wheel cap	£9.91 £8.26
20	ST6375 704 3611 Available to backorder	Cover	£12.86 £10.72
21	ST9216 261 1100 In stock	Hexagon nut M8	£0.79 £0.66
22	ST9291 021 0160 Available to backorder	Washer 7.4	£0.35 £0.29
23	ST9296 021 1608 In stock	Washer 12x18x0.5	£0.72 £0.60
24	ST9220 263 1100 Available to backorder	Hexagon nut M8	£0.79 £0.66
25	ST9460 624 1001 In stock	E-clip 10	£0.37 £0.31
26	ST9460 624 0500 In stock	E-clip 5	£0.53 £0.44
28	ST9503 003 5297 Available to backorder	Grooved ball bearing 6001-2TRS	£5.77 £4.81
29	ST0013 649 0204 Available to backorder	Sealing ring	£0.46 £0.38
31	ST6378 641 3102 Available to backorder	Spring	£2.83 £2.36
32	ST6378 640 6401 Available to backorder	Lever	£43.01 £35.84
33	ST9645 945 0755 In stock	O-ring 9x18	£0.61 £0.51
34	ST9380 620 2621 Available to backorder	Roll pin 5x22	£0.68 £0.57
36	ST9022 341 1270 In stock	Screw IS M6x14	£0.91 £0.76
37	ST9070 010 4430 Available to backorder	Bolt with inner hex TT6x20	£0.91 £0.76
39	ST0013 950 9600 Available to backorder	Screw with washer M4x8	£34.37 £28.64
40	ST6378 643 5100 Available to backorder	Spring (bypass)	£1.14 £0.95
41	ST9294 021 0270 Available to backorder	Washer 17	£0.68 £0.57
