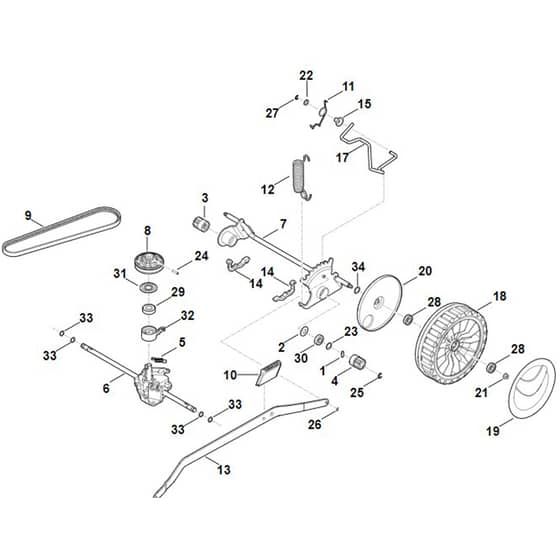

Stihl RM650.0 VE - Shaft, Gear Box - Parts Diagram

Name: Stihl RM650.0 VE - Shaft, Gear Box - Parts Diagram
SKU: rm650_0_ve_shaft_gear_box-group
Price: 0.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl RM650.0 VE - Shaft, Gear Box - Parts Diagram

Description

Stihl RM650.0 VE - Shaft, Gear Box - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST0000 704 8300 In stock	Freewheel key	£1.66 £1.38
2	ST6103 704 7910 Available to backorder	Protection disk	£1.10 £0.92
3	ST6105 704 7400 In stock	Pinion	£13.76 £11.47
4	ST6105 704 7410 In stock	Pinion	£13.96 £11.63
5	ST6360 643 3800 Available to backorder	Tension spring	£1.54 £1.28
6	ST6364 640 0100 Available to backorder	Gear box assy. (Contains 5+8+24+29+31+32)	£115.50 £96.25
7	ST6364 700 2410 Available to backorder	Rear axle	£63.26 £52.72
8	ST6364 700 2500 In stock	V-belt pulley assy. (Contains 29+31+32)	£36.86 £30.72
9	ST6364 704 2100 Available to backorder	V-belt	£20.80 £17.33
10	ST6364 703 4000 Available to backorder	Clips (cutting height indicator)	£5.06 £4.22
11	ST6364 703 4900 Available to backorder	Torsion spring	£2.08 £1.73
12	ST6364 703 5100 Available to backorder	Tension spring	£19.90 £16.58
13	ST6364 703 8800 Available to backorder	Translation lever	£57.20 £47.67
14	ST6364 704 1210 Available to backorder	Rear axle bracket	£3.86 £3.22
15	ST6364 763 3010 Available to backorder	Bearing bushing	£6.16 £5.13
17	ST6364 763 6000 Available to backorder	Interlock lever	£21.46 £17.88
18	ST6375 700 0402 Available to backorder	Wheel assy. 230 (Contains 20+28)	£47.52 £39.60
19	ST6375 704 0311 Available to backorder	Wheel cap	£9.58 £7.98
20	ST6375 704 3611 Available to backorder	Cover	£12.44 £10.37
21	ST9216 261 1100 Available to backorder	Hexagon nut M8	£0.76 £0.63
22	ST9291 021 0160 Available to backorder	Washer 7.4	£0.48 £0.40
23	ST9296 021 1608 Available to backorder	Washer 12x18x0.5	£0.66 £0.55
24	ST9380 620 2730 Available to backorder	Roll pin 5x36	£0.88 £0.73
25	ST9460 624 1001 In stock	E-clip 10	£0.34 £0.28
26	ST9460 624 0500 In stock	E-clip 5	£0.47 £0.39
28	ST9503 003 5297 In stock	Grooved ball bearing 6001-2TRS	£5.38 £4.48
33	ST9645 945 0755 Available to backorder	O-ring 9x18	£0.56 £0.47
34	ST9294 021 0270 Available to backorder	Washer 17	£0.66 £0.55
