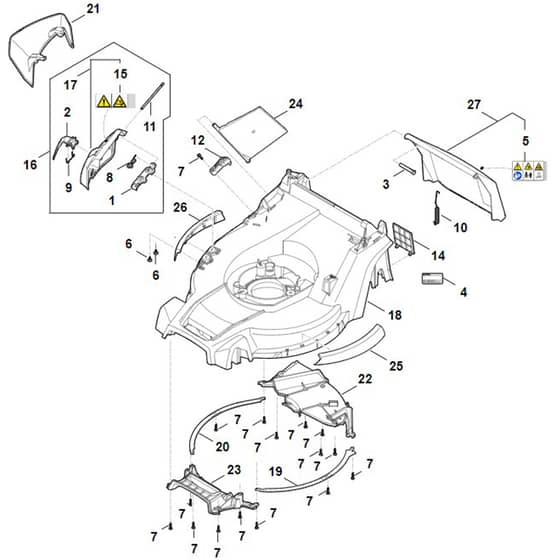

Stihl RM443.3 - Housing - Parts Diagram

Name: Stihl RM443.3 - Housing - Parts Diagram
SKU: rm443_3_housing-group
Price: 0.66 GBP
Availability: InStock

Part No. rm443_3_housing-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Stihl RM443.3 - Housing - Parts Diagram

	Part No.	Details
1	ST0000 704 5401 Available to backorder	Support	£13.43 £11.19
2	ST0000 706 0100 Available to backorder	Lock	£5.23 £4.36
3	ST0000 706 5905 Available to backorder	Bolt	£5.69 £4.74
4	ST0000 967 3454 Available to backorder	Warning sign with machine number	£2.15 £1.79
5	ST0000 967 6743 Available to backorder	Sticker	£2.15 £1.79
6	ST4867 951 3500 Available to backorder	Screw M5x12 10.9	£0.79 £0.66
7	ST9104 020 3053 Available to backorder	Self-tapping screw IS-P5x22	£0.91 £0.76
8	STWA41 703 4900 Available to backorder	Torsion spring	£2.83 £2.36
9	STWA41 703 4905 Available to backorder	Torsion spring	£1.37 £1.14
10	STWA41 703 5110 Available to backorder	Tension spring	£2.83 £2.36
11	STWA41 703 9000 Available to backorder	Bolt	£9.91 £8.26
12	STWA41 700 2900 Available to backorder	Adjusting lever	£13.32 £11.10
14	STWA41 706 0700 Available to backorder	Cover	£4.45 £3.71
15	STWA41 967 7200 Available to backorder	Warning pictogram	£2.15 £1.79
16	STWA40 700 2700 Available to backorder	Flap (Contains 1 + 2 + 8 + 9 + 11 + 15 + 17)	£26.17 £21.81
17	STWA40 700 2705 Available to backorder	Flap (Contains 15)	£13.76 £11.47
18	STWA40 700 8500 Available to backorder	Housing (Contains 14 + 22 + 23)	£160.56 £133.80
19	STWA40 703 6300 Available to backorder	Strip	£18.89 £15.74
20	STWA40 703 6305 Available to backorder	Strip	£18.11 £15.09
21	STWA40 706 0300 Available to backorder	Extension	£31.18 £25.98
22	STWA40 706 0700 Available to backorder	Cover	£39.14 £32.62
23	STWA40 706 0701 Available to backorder	Cover	£19.91 £16.59
24	STWA40 706 2400 Available to backorder	Flap	£15.48 £12.90
25	STWA40 706 7300 Available to backorder	Protective strip	£6.94 £5.78
26	STWA40 706 7305 Available to backorder	Protective strip	£6.94 £5.78
27	STWB41 700 2700 Available to backorder	Flap (Contains 5)	£40.06 £33.38
