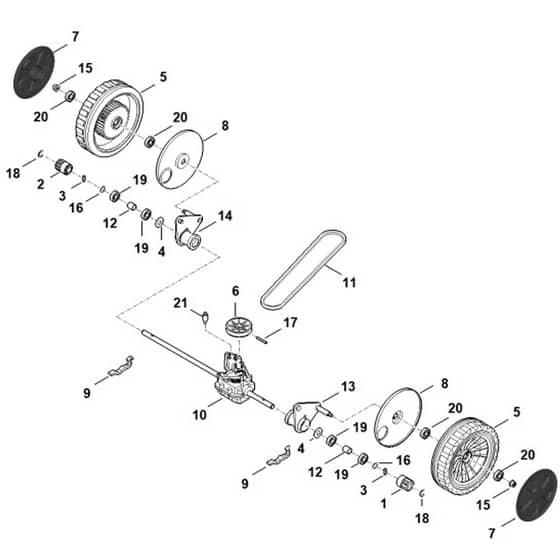

Stihl RM4.1 RT - Front Axle, Gear Box - Parts Diagram

Stihl RM4.1 RT - Front Axle, Gear Box - Parts Diagram
Stihl RM4.1 RT - Front Axle, Gear Box - Parts Diagram

Description

Stihl RM4.1 RT - Front Axle, Gear Box - Parts Diagram

Ref. Img. Part No. Details
  1 Pinion
Pinion
ST6105 704 7410
In stock
Pinion
£13.96 £11.63

  2 Pinion
Pinion
ST6105 704 7400
In stock
Pinion
£13.76 £11.47

  3 Freewheel key
Freewheel key
ST0000 704 8300
In stock
Freewheel key
£1.66 £1.38

  4 Protection disk
Protection disk
ST6103 704 7910
Available to backorder
Protection disk
£1.10 £0.92

  5 Wheel 200 (Contains 8+20)
Wheel 200 (Contains 8+20)
ST0000 700 0425
In stock
Wheel 200 (Contains 8+20)
£25.64 £21.37

  6 V-belt pulley
V-belt pulley
ST6360 704 1000
Available to backorder
V-belt pulley
£11.44 £9.53

  7 Wheel Cap
Wheel Cap
ST0000 704 0315
Available to backorder
Wheel Cap
£6.60 £5.50

  8 Cover
Cover
ST6375 704 3611
Available to backorder
Cover
£12.44 £10.37

  9 Axle guard
Axle guard
ST6375 763 2800
Available to backorder
Axle guard
£2.64 £2.20

  10 Gear box assy. (Contains 6+17)
Gear box assy. (Contains 6+17)
ST6383 640 0100
Available to backorder
Gear box assy. (Contains 6+17)
£108.90 £90.75

  11 V-belt
V-belt
ST6383 704 2100
Available to backorder
V-belt
£22.00 £18.33

  12 Distance sleeve
Distance sleeve
ST6383 764 2800
Available to backorder
Distance sleeve
£2.64 £2.20

  13 Swivel plate left
Swivel plate left
ST6383 780 4910
Available to backorder
Swivel plate left
£51.58 £42.98

  14 Swivel plate right
Swivel plate right
ST6383 780 4915
Available to backorder
Swivel plate right
£51.58 £42.98

  15 Hexagon nut M8
Hexagon nut M8
ST9216 261 1100
Available to backorder
Hexagon nut M8
£0.76 £0.63

  16 Washer 12x18x0.5
Washer 12x18x0.5
ST9296 021 1608
Available to backorder
Washer 12x18x0.5
£0.66 £0.55

  17 Roll pin 5x36
Roll pin 5x36
ST9380 620 2730
Available to backorder
Roll pin 5x36
£0.88 £0.73

  18 E-clip 10
E-clip 10
ST9460 624 1001
In stock
E-clip 10
£0.34 £0.28

  19 Grooved ball bearing 6001-2TRS
Grooved ball bearing 6001-2TRS
ST9503 003 5297
In stock
Grooved ball bearing 6001-2TRS
£5.38 £4.48

  21 Support
Support
ST6383 763 3800
Available to backorder
Support
£0.88 £0.73
