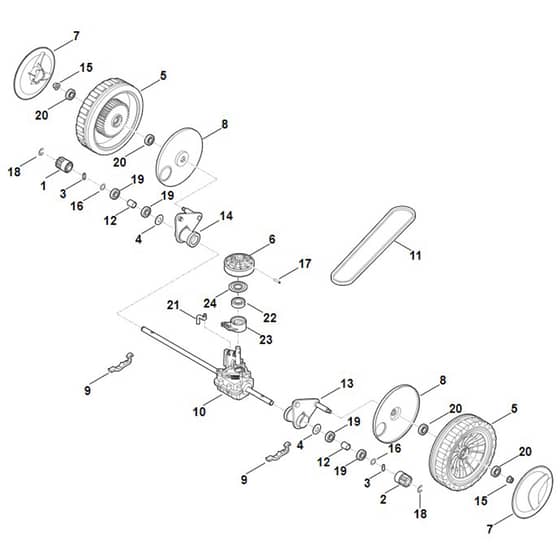

Stihl RM4.0 RV - Front Axle, Gear Box - Parts Diagram

Description

Stihl RM4.0 RV - Front Axle, Gear Box - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST6105 704 7410 In stock	Pinion	£13.96 £11.63
2	ST6105 704 7400 In stock	Pinion	£13.76 £11.47
3	ST0000 704 8300 In stock	Freewheel key	£1.66 £1.38
4	ST6103 704 7910 Available to backorder	Protection disk	£1.10 £0.92
5	ST0000 700 0425 In stock	Wheel assy. 200 (Contains 8+20)	£25.64 £21.37
6	ST6360 700 2513 Available to backorder	V-belt pulley assy. (Contains 22-24)	£36.86 £30.72
7	ST6375 704 0301 In stock	Wheel cap	£6.60 £5.50
8	ST6375 704 3611 Available to backorder	Cover	£12.44 £10.37
9	ST6375 763 2800 Available to backorder	Axle guard	£2.64 £2.20
12	ST6383 764 2800 Available to backorder	Distance sleeve	£2.64 £2.20
13	ST6383 780 4910 Available to backorder	Swivel plate left	£51.58 £42.98
14	ST6383 780 4915 Available to backorder	Swivel plate right	£51.58 £42.98
15	ST9216 261 1100 Available to backorder	Hexagon nut M8	£0.76 £0.63
16	ST9296 021 1608 Available to backorder	Washer 12x18x0.5	£0.66 £0.55
17	ST9380 620 2620 Available to backorder	Roll pin 5x20	£0.66 £0.55
18	ST9460 624 1001 In stock	E-clip 10	£0.34 £0.28
19	ST9503 003 5297 In stock	Grooved ball bearing 6001-2TRS	£5.38 £4.48
