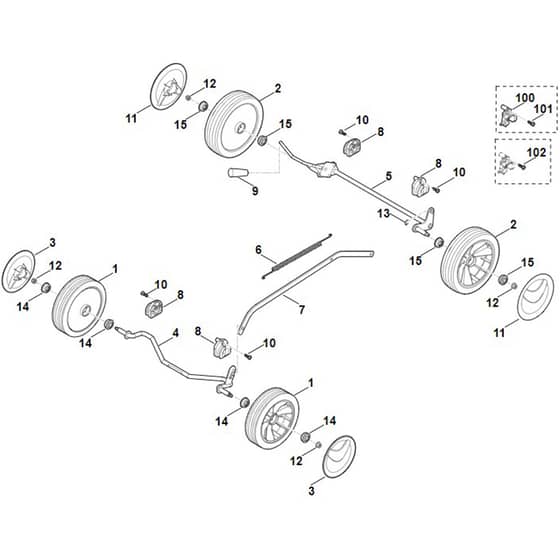

Stihl RM253.1 - Chassis - Parts Diagram

Part No. rm253_1_chassis-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl RM253.1 - Chassis - Parts Diagram

Stihl RM253.1 - Chassis - Parts Diagram

Description

Stihl RM253.1 - Chassis - Parts Diagram

Ref.		Img.	Part No.	Details
	1		ST6100 700 0401 In stock	Wheel (Contains 14)		£20.16 £16.80
	2		ST6105 700 0491 Available to backorder	Wheel (Contains 15)		£23.21 £19.34
	3		ST6340 704 0301 Available to backorder	Wheel cap		£5.42 £4.52
	4		ST6350 700 2421 Available to backorder	Axle		£40.86 £34.05
	5		ST6371 700 2400 Available to backorder	Axle (Contains 9)		£48.71 £40.59
	6		ST6350 703 5105 In stock	Tension spring		£9.30 £7.75
	7		ST6371 703 8800 Available to backorder	Translation lever		£45.52 £37.93
	8		ST6371 007 1090 In stock	Axle guard		£4.36 £3.63
	9		ST6350 706 6800 Available to backorder	Handle		£6.83 £5.69
	10		ST9104 007 4289 In stock	Self-tapping screw P5x20		£0.95 £0.79
	11		ST6375 704 0301 In stock	Wheel cap		£7.08 £5.90
	12		ST9216 261 1100 In stock	Hexagon nut M8		£0.79 £0.66
	13		ST9460 624 0600 In stock	E-clip 6		£0.37 £0.31
	14		ST9503 003 9011 Available to backorder	Grooved ball bearing 27M-36x12		£6.25 £5.21
	101		ST9104 007 4260 In stock	Self-tapping screw P5x12		£0.83 £0.69
	102		ST9104 007 4270 In stock	Self-tapping screw P5x16		£0.95 £0.79

Description

Stihl RM253.1 - Chassis - Parts Diagram
