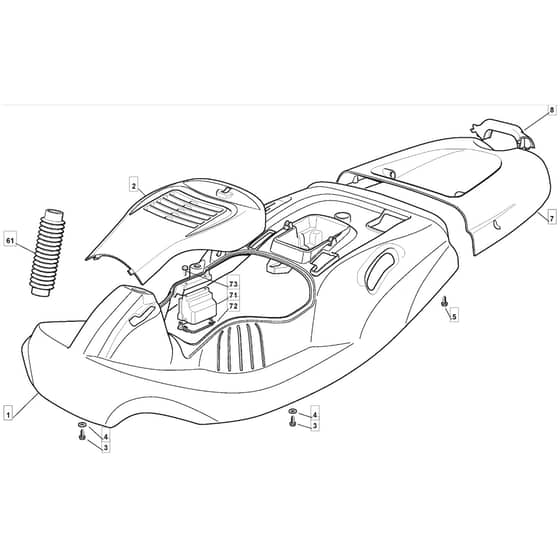

RM25 - 2009 - 2T0112433/BM9 - Mountfield Ride On Mower Body Diagram

Description

Mountfield RM25 Parts Diagram

Product Name - RM 25

Model Year - 2009

Model Type - EL 63

Art.N - 2T0112433/BM9

	Part No.	Details
2	MO127110374/0 Available to backorder	Engine Cover Black	£75.76 £63.13
3	MO112735410/0 Available to backorder	Screw	£1.63 £1.36
4	MO112523040/0 In stock	Washer	£1.55 £1.29
5	MO112735402/0 In stock	Screw	£1.55 £1.29
7	MO327110357/1 Available to backorder	Red Grass-Catcher Cover	£71.81 £59.84
8	MO127394000/0 Available to backorder	Handle	£15.76 £13.13
61	MO127600114/1 Available to backorder	Column Extension Protection El	£8.93 £7.44
71	MO127600119/0 Available to backorder	Electronis Card Upper Protecti	£124.86 £104.05
73	MO112727810/0 Available to backorder	Self-Tap Screw 3.5 X 13	£1.55 £1.29
