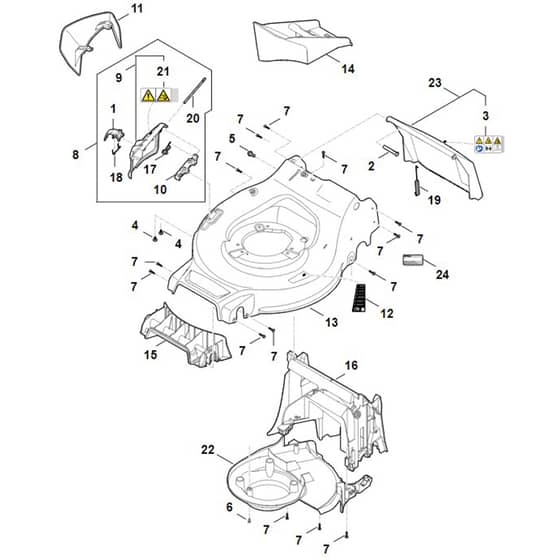

Stihl RM248.3 T - Housing - Parts Diagram

Name: Stihl RM248.3 T - Housing - Parts Diagram
SKU: rm248_3_t_housing-group
Price: 0.63 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl RM248.3 T - Housing - Parts Diagram

Description

Stihl RM248.3 T - Housing - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST0000 706 0105 Available to backorder	Lock	£4.30 £3.58
2	ST0000 706 5905 Available to backorder	Bolt	£5.50 £4.58
3	ST0000 967 6743 Available to backorder	Sticker	£2.08 £1.73
4	ST4867 951 3500 Available to backorder	Screw M5x12 10.9	£0.76 £0.63
5	ST9018 318 1801 Available to backorder	Hexagon head screw M8x20	£1.00 £0.83
6	ST9039 488 0977 Available to backorder	Self-tapping screw M5x12	£0.76 £0.63
7	ST9104 020 3053 Available to backorder	Self-tapping screw IS-P5x22	£0.88 £0.73
8	STWA21 700 2700 Available to backorder	Flap (Contains 1 + 9 + 10 + 17 + 18 + 20 + 21)	£17.06 £14.22
9	STWA21 700 2705 Available to backorder	Flap (Contains 21)	£7.82 £6.52
10	STWA21 704 5400 Available to backorder	Support	£12.76 £10.63
11	STWA21 706 0300 Available to backorder	Extension	£28.82 £24.02
12	STWA21 967 4401 Available to backorder	Sticker	£2.08 £1.73
13	STWA21 700 8590 Available to backorder	Housing (Contains 12)	£252.83 £210.69
14	STWA21 701 1600 Available to backorder	Insert	£55.54 £46.28
15	STWA21 701 4300 Available to backorder	Insert	£30.36 £25.30
16	STWA21 701 4305 Available to backorder	Insert	£105.04 £87.53
17	STWA41 703 4900 Available to backorder	Torsion spring	£2.74 £2.28
18	STWA41 703 4905 Available to backorder	Torsion spring	£1.32 £1.10
19	STWA41 703 5110 Available to backorder	Tension spring	£2.74 £2.28
20	STWA41 703 9000 Available to backorder	Bolt	£9.58 £7.98
21	STWA41 967 7200 Available to backorder	Warning pictogram	£2.08 £1.73
22	STWB21 706 0700 Available to backorder	Cover	£30.70 £25.58
23	STWB41 700 2700 Available to backorder	Flap (Contains 3)	£38.72 £32.27
24	ST0000 967 3454 Available to backorder	Warning sign with machine number	£2.08 £1.73
