Stihl RM248.3 T - Chassis, Gear Box - Parts Diagram

Description

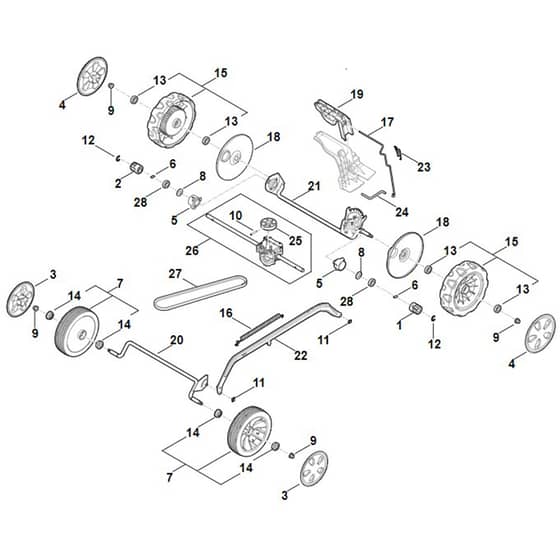

Stihl RM248.3 T - Chassis, Gear Box - Parts Diagram

	Part No.	Details
1	ST0000 640 2501 Available to backorder	Drive pinion	£14.80 £12.33
2	ST0000 640 2506 Available to backorder	Drive pinion	£14.80 £12.33
3	ST0000 704 0310 Available to backorder	Wheel cap	£6.37 £5.31
4	ST0000 704 0315 Available to backorder	Wheel cap	£6.83 £5.69
5	ST0000 704 3200 Available to backorder	Sleeve	£3.19 £2.66
6	ST0000 704 8300 In stock	Freewheel key	£1.76 £1.47
7	ST6100 700 0401 In stock	Wheel (Contains 14)	£20.16 £16.80
8	ST6103 704 7910 In stock	Protection disk	£1.19 £0.99
9	ST9216 263 1100 Available to backorder	Hexagon nut M8-8	£0.76 £0.63
10	ST9380 620 2700 Available to backorder	Roll pin 5x30	£0.79 £0.66
12	ST9460 624 1001 In stock	E-clip 10	£0.37 £0.31
13	ST9503 003 5297 Available to backorder	Grooved ball bearing 6001-2TRS	£5.77 £4.81
14	ST9503 003 9011 Available to backorder	Grooved ball bearing 27M-36x12	£6.25 £5.21
15	STWA21 700 0405 Available to backorder	Wheel (Contains 13)	£28.34 £23.62
16	STWA21 703 5100 Available to backorder	Tension spring	£9.79 £8.16
17	STWA21 703 6700 Available to backorder	Lever	£10.69 £8.91
18	STWA21 704 3600 Available to backorder	Cover	£15.12 £12.60
19	STWA21 791 4800 Available to backorder	Trip lever	£3.52 £2.93
20	STWA21 700 2405 Available to backorder	Axle	£38.34 £31.95
21	STWA21 700 2410 Available to backorder	Axle	£51.56 £42.97
22	STWA21 780 0400 Available to backorder	Translation lever	£56.44 £47.03
23	STWA41 703 5105 Available to backorder	Tension spring	£2.15 £1.79
24	STWA41 763 6005 Available to backorder	Detent lever	£2.05 £1.71
25	STWB21 704 1000 Available to backorder	V-belt pulley	£24.68 £20.57
26	STWB21 640 0100 In stock	Gear head (Contains 10 + 25)	£89.16 £74.30
27	ST6336 704 2100 In stock	V-belt	£20.99 £17.49
