Rider 72M - 2020-2023 - 2T0110483/MC - Mountfield Ride On Mower Steering Diagram

Description

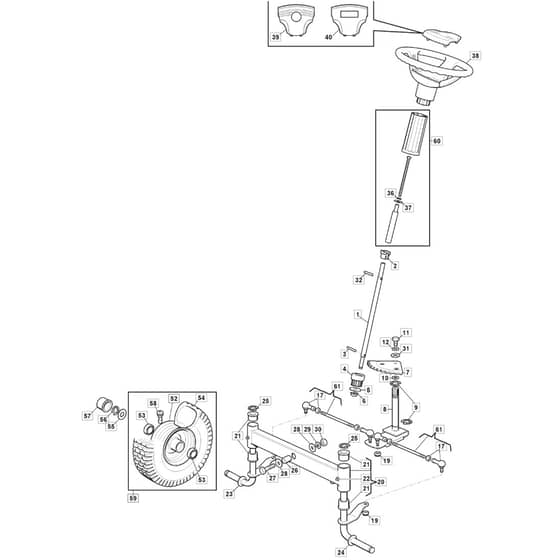

Mountfield Rider 72M Parts Diagram

Product Name - Rider 28M

Model Year - 2020-2023

Model Type - F 72 F.L.

Art.N - 2T0110483/MC

Engine Model - ST 350

Be the first to review this product

0 product questions

	Part No.	Details
3	MO112622650/0 Available to backorder	Dowel Pin	£1.69 £1.41
5	MO112521370/0 Available to backorder	Washer	£1.55 £1.29
6	MO112436030/0 In stock	Plate	£1.82 £1.52
10	MO112520031/0 Available to backorder	Washer	£1.55 £1.29
11	MO112793102/0 In stock	Screw	£1.55 £1.29
12	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
17	MO122746609/0 Available to backorder	Joint	£21.83 £18.19
19	MO112156602/0 In stock	Nut	£1.40 £1.17
21	MO125034002/1 Available to backorder	Bushing	£3.79 £3.16
22	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
25	MO112001000/0 Available to backorder	Benzing Ring	£1.82 £1.52
27	MO112692695/0 Available to backorder	Screw	£1.55 £1.29
28	MO112523100/0 Available to backorder	Washer	£1.97 £1.64
29	MO112587100/0 Available to backorder	Grower	£1.55 £1.29
30	MO112295300/0 Available to backorder	Nut	£1.55 £1.29
31	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
32	MO112620300/0 Available to backorder	Spring Pin 6X50	£1.82 £1.52
36	MO112540260/0 Available to backorder	Washer	£1.55 £1.29
37	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
53	MO125122200/2 In stock	Bearing	£11.82 £9.85
56	MO112001010/0 Available to backorder	Benzing Ring	£1.82 £1.52
61	MO384840051/0 Available to backorder	Spindle Link Tie-Rod Ass.Y	£33.79 £28.16
