Rider 72M - 2020-2023 - 2T0110483/MC - Mountfield Ride On Mower ST 352cc Engine Diagram

Description

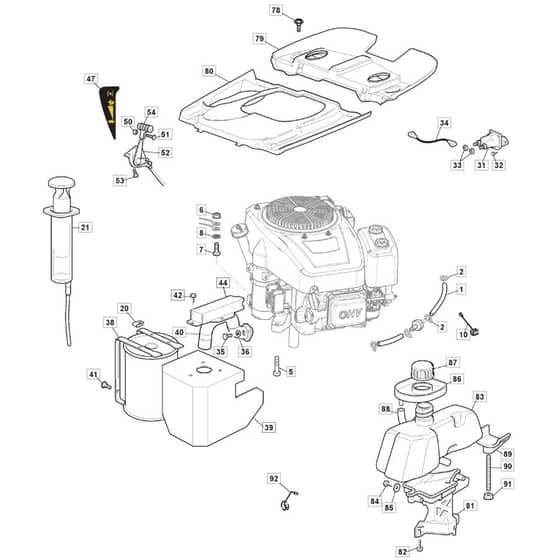

Mountfield Rider 72M Parts Diagram

Product Name - Rider 28M

Model Year - 2020-2023

Model Type - F 72 F.L.

Art.N - 2T0110483/MC

Engine Model - ST 350

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325869035/1 Available to backorder	Connecting Tube	£9.07 £7.56
2	MO118375062/0 Available to backorder	Fair Led	£1.82 £1.52
5	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
6	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
7	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
8	MO112540260/0 Available to backorder	Washer	£1.55 £1.29
10	MO125430239/1 Available to backorder	Spring	£1.97 £1.64
20	MO112437504/0 Available to backorder	Plate	£1.69 £1.41
21	MO118718000/0 Available to backorder	Oil Emptying Syringe	£15.90 £13.25
31	MO118736113/0 In stock	Starter Relay	£38.00 £31.67
32	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
33	MO112361005/0 Available to backorder	Nut	£4.22 £3.52
34	MO127065050/0 Available to backorder	Cable	£6.34 £5.28
35	MO112737450/0 Available to backorder	Screw	£3.79 £3.16
36	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
38	MO384750059/0 Available to backorder	Muffler Imasaf	£147.80 £123.17
39	MO384598099/1 Available to backorder	Muffler Guard From S.N 20CA3RON008224	£46.46 £38.72
39	MO384598099/0 Available to backorder	Muffler Guard To S.N 20CA3RON008223	£47.87 £39.89
40	MO118738268/0 Available to backorder	Exhaust Pipe	£15.20 £12.67
41	MO125943009/0 Available to backorder	Screw	£1.62 £1.35
42	MO112729601/1 Available to backorder	Screw To S.N 20BA3RON007129	£1.48 £1.23
42	MO112729600/0 Available to backorder	Screw From S.N 20BA3RON007130	£1.55 £1.29
44	MO327600137/2 Available to backorder	Protection From S.N 20BA3RON007130	£6.34 £5.28
44	MO327600137/1 Available to backorder	Protection To S.N 20BA3RON007129	£6.47 £5.39
47	MO114363697/0 Available to backorder	Label	£1.55 £1.29
50	MO112290800/0 Available to backorder	Nut	£1.55 £1.29
51	MO112726388/0 Available to backorder	Screw	£1.55 £1.29
52	MO184000250/1 Available to backorder	Accelerator	£30.97 £25.81
53	MO125943012/0 Available to backorder	Screw	£1.55 £1.29
54	MO125394501/0 Available to backorder	Knob	£1.55 £1.29
78	MO125943010/0 Available to backorder	Screw	£1.97 £1.64
79	MO327110515/0 Available to backorder	Black Seat Switch Cover	£12.17 £10.14
80	MO327110506/1 Available to backorder	Engine Cover	£20.14 £16.78
81	MO327787062/0 Available to backorder	Support	£27.80 £23.17
82	MO112735410/0 Available to backorder	Screw	£1.55 £1.29
83	MO127733003/1 Available to backorder	Fuel Tank	£61.93 £51.61
85	MO112523040/0 In stock	Washer	£1.49 £1.24
86	MO327600061/2 Available to backorder	Guard	£3.67 £3.06
87	MO125795000/1 In stock	Fuel Cap	£7.74 £6.45
88	MO325869014/1 Available to backorder	Fuel Pipe L410	£7.61 £6.34
89	MO327787063/0 Available to backorder	Support	£1.40 £1.17
90	MO127510118/0 Available to backorder	Pin	£3.52 £2.93
91	MO112293201/0 In stock	Nut	£1.69 £1.41
92	MO127430557/0 Available to backorder	Spring	£3.52 £2.93
