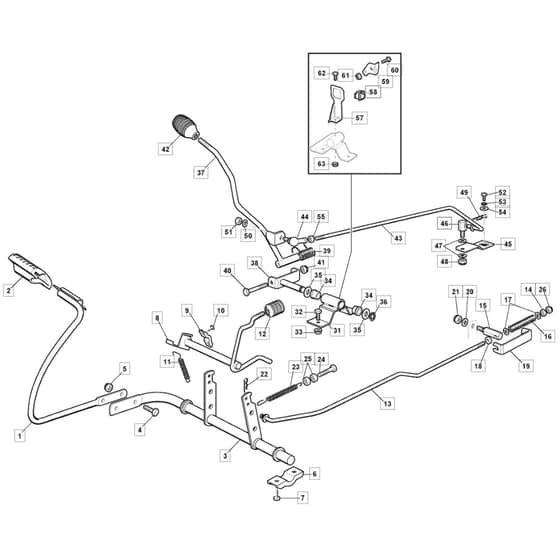

Rider 72M - 2020-2023 - 2T0110483/MC - Mountfield Ride On Mower Controls Diagram

Description

Mountfield Rider 72M Parts Diagram

Product Name - Rider 28M

Model Year - 2020-2023

Model Type - F 72 F.L.

Art.N - 2T0110483/MC

Engine Model - ST 350

Be the first to review this product

0 product questions

	Part No.	Details
1	MO384503001/0 Available to backorder	Pedal	£23.65 £19.71
2	MO125110269/0 Available to backorder	Clamp Cover	£3.67 £3.06
3	MO384001015/1 Available to backorder	Axle	£46.46 £38.72
4	MO112793301/0 In stock	Screw	£1.55 £1.29
6	MO327546015/2 Available to backorder	Plate	£1.55 £1.29
7	MO112731350/0 Available to backorder	Screw	£1.55 £1.29
8	MO384001039/0 Available to backorder	Parking Brake Axle Assy	£11.27 £9.39
9	MO325547049/0 Available to backorder	Plate	£3.10 £2.58
10	MO112731601/0 Available to backorder	Screw	£1.97 £1.64
11	MO127430552/0 Available to backorder	Spring	£1.55 £1.29
12	MO127395050/1 Available to backorder	Knob	£2.95 £2.46
13	MO127034060/0 Available to backorder	Rod	£32.30 £26.92
14	MO112293200/0 In stock	Nut	£1.55 £1.29
15	MO127510115/0 Available to backorder	Pin	£7.74 £6.45
16	MO125430236/1 Available to backorder	Spring	£1.55 £1.29
17	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
18	MO122171001/0 Available to backorder	Spacer	£1.97 £1.64
19	MO325774275/1 Available to backorder	Clamp	£3.52 £2.93
20	MO112523050/0 In stock	Washer	£1.55 £1.29
21	MO112154510/0 In stock	Nut	£1.55 £1.29
22	MO124487997/0 Available to backorder	Cotter Pin	£1.55 £1.29
23	MO125430220/0 Available to backorder	Brake Spring	£4.08 £3.40
24	MO122943005/0 Available to backorder	Screw	£2.53 £2.11
26	MO112155000/0 In stock	Nut	£1.55 £1.29
31	MO384773551/1 Available to backorder	Clamp	£8.45 £7.04
32	MO112793102/0 In stock	Screw	£1.55 £1.29
33	MO112293201/0 In stock	Nut	£1.69 £1.41
34	MO127047002/0 Available to backorder	Bushing	£1.81 £1.51
35	MO112521370/0 Available to backorder	Washer	£1.55 £1.29
36	MO112608600/0 In stock	Seeger	£1.55 £1.29
37	MO384317101/0 Available to backorder	Lever. Speed Drive Control	£29.28 £24.40
38	MO384773553/0 Available to backorder	Clamp	£14.92 £12.43
39	MO125430226/0 Available to backorder	Spring	£2.26 £1.88
40	MO112692050/0 Available to backorder	Screw	£1.82 £1.52
42	MO182394508/0 Available to backorder	Knob	£8.38 £6.98
43	MO127034052/0 Available to backorder	Rod	£23.65 £19.71
44	MO122746601/0 Available to backorder	Joint	£19.14 £15.95
45	MO327315077/0 Available to backorder	Gearshift	£1.97 £1.64
46	MO125510168/0 Available to backorder	Pin From S.N 19DA3RON003468	£4.50 £3.75
46	MO125510040/2 Available to backorder	Pin To S.N 19LA3RON002973	£5.76 £4.80
47	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
50	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
52	MO112735520/0 Available to backorder	Screw	£1.55 £1.29
53	MO112540040/0 Available to backorder	Washer	£1.40 £1.17
54	MO322680009/0 Available to backorder	Washer	£1.82 £1.52
57	MO327787111/0 Available to backorder	Micro Switch Bracket	£1.69 £1.41
58	MO119410623/0 Available to backorder	Microswitch	£7.62 £6.35
59	MO327063027/0 Available to backorder	Micro Switch Bracket	£2.40 £2.00
60	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
62	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
63	MO112292102/0 In stock	Nut	£1.69 £1.41
