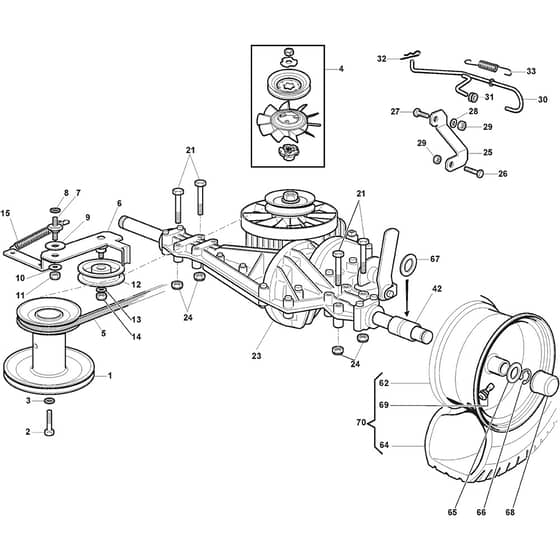

Rider 28H - 2022-2023 - 2T0210447/AT2 - Atco Ride On Mower Transmission Diagram

Name: Rider 28H - 2022-2023 - 2T0210447/AT2 - Atco Ride On Mower Transmission Diagram
SKU: rider_28h_2t0210447_at2_transmission-group
Price: 1.16 GBP
Availability: InStock

Part No. rider_28h_2t0210447_at2_transmission-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Rider 28H - 2022-2023 - 2T0210447/AT2 - Atco Ride On Mower Transmission Diagram

Description

Atco Rider 28H Parts Diagram

Product Name - Rider 28H

Model Year - 2022-2023

Model Type - F 72 Hydro F.L.

Art.N - 2T0210447/AT2

Engine Model - ST 350

	Part No.	Details
1	MO127604005/0 Available to backorder	Pulley	£92.21 £76.84
2	MO112737310/0 Available to backorder	Screw	£2.94 £2.45
3	MO112543000/0 Available to backorder	Washer	£1.63 £1.36
4	MO1139-2202-01 Available to backorder	Fan Kit	£168.91 £140.76
5	MO135061407/1 Available to backorder	Trapezoidal Belt	£23.57 £19.64
6	MO384317067/1 Available to backorder	Lever	£17.87 £14.89
7	MO127510096/0 Available to backorder	Fulcrum Pin	£4.78 £3.98
8	MO112540260/0 Available to backorder	Washer	£1.63 £1.36
9	MO322672151/0 Available to backorder	Antifriction Washer	£1.84 £1.53
10	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
11	MO112155010/0 In stock	Nut	£2.11 £1.76
12	MO125601554/0 In stock	Pulley	£25.66 £21.38
13	MO112523060/0 In stock	Washer	£1.55 £1.29
15	MO122446402/1 Available to backorder	Spring	£5.06 £4.22
21	MO112691910/0 Available to backorder	Screw	£1.73 £1.44
23	MO118400976/2 Available to backorder	Hydrostatic Transaxle - Hydrogear (T2-Bdbe-2X1A-16X1)	£751.90 £626.58
24	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
25	MO327787075/0 Available to backorder	Support	£11.74 £9.78
26	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
27	MO112793102/0 In stock	Screw	£1.55 £1.29
28	MO112521350/0 In stock	Washer	£1.55 £1.29
29	MO112155000/0 In stock	Nut	£1.55 £1.29
30	MO384002087/2 Available to backorder	Rod	£30.98 £25.82
31	MO118564512/0 Available to backorder	Fairlead	£1.39 £1.16
32	MO124487997/0 In stock	Cotter Pin	£1.55 £1.29
33	MO125430213/0 Available to backorder	Spring	£1.70 £1.42
42	MO127160059/0 Available to backorder	Spacer	£5.65 £4.71
62	MO184044019/0 Available to backorder	Rear Wheel Rimm Dark Grey Rimm	£54.37 £45.31
62	MO184044013/0 Available to backorder	Rear Wheel Rimm Light Grey Rimm	£54.37 £45.31
64	MO127590051/0 In stock	Tyre 15X6.00-6 P512 (Wanda)	£51.97 £43.31
65	MO125670005/2 In stock	Washer	£4.08 £3.40
66	MO112001000/0 Available to backorder	Circlip Ø15	£1.84 £1.53
67	MO125670006/0 Available to backorder	Washer	£1.63 £1.36
68	MO122110230/0 In stock	Hub Cover	£1.55 £1.29
69	MO125950000/0 In stock	Valve	£5.34 £4.45
70	MO384680079/0 Available to backorder	Wheel Ass.Y 15" Fe+Wa P512 Dark Grey	£101.34 £84.45
