Rider 28H - 2021 - 2T0210447/AT1 - Atco Ride On Mower Hydro-Gear Unit Diagram

Name: Rider 28H - 2021 - 2T0210447/AT1 - Atco Ride On Mower Hydro-Gear Unit Diagram
SKU: rider_28h_2t0210447_at1_hydro_gear_unit-group
Price: 1.16 GBP
Availability: InStock

Part No. rider_28h_2t0210447_at1_hydro_gear_unit-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Rider 28H - 2021 - 2T0210447/AT1 - Atco Ride On Mower Hydro-Gear Unit Diagram

Description

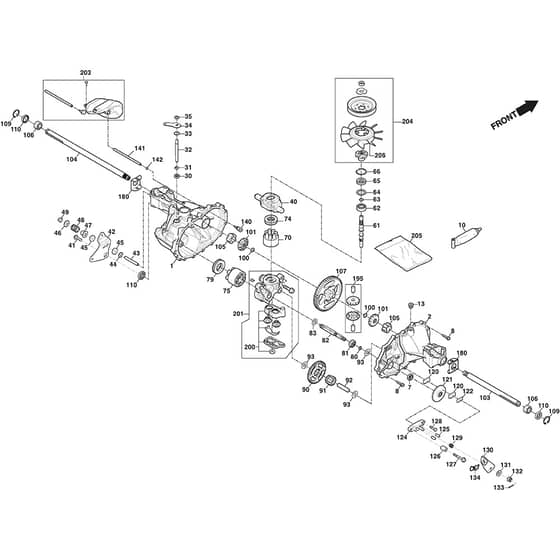

Atco Rider 28H Parts Diagram

Product Name - Rider 28H

Model Year - 2021

Model Type - F 72 Hydro F.L.

Art.N - 2T0210447/AT1

Engine Model - ST 350

	Part No.	Details
7	MO118870111/0 Available to backorder	Seal	£11.50 £9.58
30	MO118870079/0 Available to backorder	Seal	£10.88 £9.07
40	MO118870090/0 Available to backorder	Swashplate	£123.06 £102.55
45	MO118870087/0 Available to backorder	Washer	£4.37 £3.64
47	MO118870118/0 Available to backorder	Spacer	£4.02 £3.35
48	MO118870073/0 Available to backorder	Spring	£12.05 £10.04
49	MO118870074/0 Available to backorder	Nut	£1.39 £1.16
61	MO118870092/0 Available to backorder	Shaft	£112.10 £93.42
70	MO118870125/0 Available to backorder	Pump Block Assy	£167.41 £139.51
74	MO118870093/0 Available to backorder	Bearing	£48.08 £40.07
75	MO1139-2063-01 Available to backorder	Cylinder Block	£289.98 £241.65
79	MO1139-2021-01 Available to backorder	Thrust Bearing	£52.34 £43.62
100	MO118870072/0 Available to backorder	Retaining Ring	£7.42 £6.18
104	MO118870115/0 Available to backorder	Shaft	£138.13 £115.11
106	MO118870085/0 Available to backorder	Bushing	£9.06 £7.55
110	MO1139-2204-01 Available to backorder	Shaft	£10.62 £8.85
120	MO118870066/0 Available to backorder	Brake Pad	£9.42 £7.85
121	MO118870101/0 Available to backorder	Brake	£24.30 £20.25
180	MO118870112/0 Available to backorder	Plate	£14.58 £12.15
195	MO118870126/0 Available to backorder	Kit-Gears And Pins	£69.31 £57.76
203	MO118870122/0 Available to backorder	Kit-Expansion Tank	£77.44 £64.53
204	MO1139-2202-01 Available to backorder	Fan Kit	£168.91 £140.76
205	MO118870124/0 Available to backorder	Kit-Seal	£72.16 £60.13
206	MO118870131/0 Available to backorder	Hydro Gear Fan [Ajbf.Bdbe-2X3C.2X1A-16X1	£27.31 £22.76
