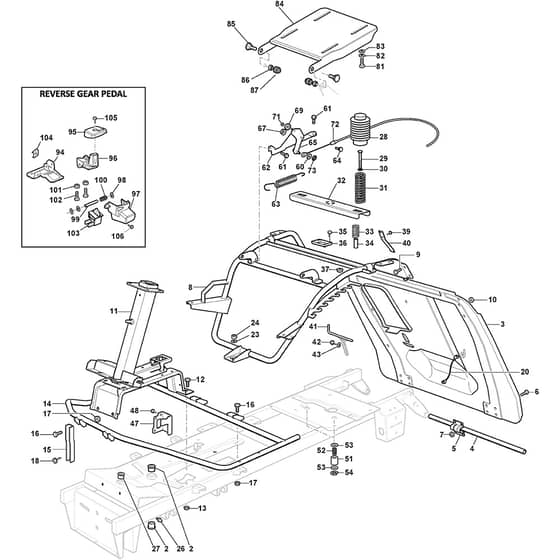

Rider 28H - 2021 - 2T0210447/AT1 - Atco Ride On Mower Frame Diagram

Name: Rider 28H - 2021 - 2T0210447/AT1 - Atco Ride On Mower Frame Diagram
SKU: rider_28h_2t0210447_at1_frame-group
Price: 1.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Rider 28H - 2021 - 2T0210447/AT1 - Atco Ride On Mower Frame Diagram

Description

Atco Rider 28H Parts Diagram

Product Name - Rider 28H

Model Year - 2021

Model Type - F 72 Hydro F.L.

Art.N - 2T0210447/AT1

Engine Model - ST 350

Be the first to review this product

0 product questions

	Part No.	Details
1	MO125034002/1 Available to backorder	Bushing	£3.79 £3.16
3	MO384545057/3 Available to backorder	Rear Plate	£161.89 £134.91
4	MO127037000/1 Available to backorder	Rear Plate Fulcrum	£8.87 £7.39
5	MO325547012/1 Available to backorder	Plate	£4.22 £3.52
8	MO384801149/1 Available to backorder	Seat Frame	£120.95 £100.79
11	MO382785243/0 Available to backorder	Steering Column Support	£88.68 £73.90
14	MO384801107/3 Available to backorder	Footboard Support	£50.68 £42.23
15	MO327787025/0 Available to backorder	Support	£3.10 £2.58
20	MO384040300/0 Available to backorder	Rear Plate	£3.38 £2.82
24	MO112155000/0 In stock	Nut	£1.55 £1.29
26	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
27	MO125034001/0 Available to backorder	Brass	£3.79 £3.16
28	MO325122003/0 Available to backorder	Hood	£9.71 £8.09
29	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
30	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
31	MO127430602/1 Available to backorder	Spring	£6.47 £5.39
32	MO327543047/0 Available to backorder	Plate	£9.64 £8.03
33	MO125430263/0 Available to backorder	Spring	£1.40 £1.17
34	MO125160048/0 Available to backorder	Spacer	£1.97 £1.64
36	MO325785379/1 Available to backorder	Support	£1.55 £1.29
37	MO112293201/0 In stock	Nut	£1.69 £1.41
39	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
40	MO127430600/0 Available to backorder	Spring	£2.81 £2.34
41	MO127294001/0 Available to backorder	Rear Conveyor Guide	£20.40 £17.00
42	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
43	MO112523040/0 In stock	Washer	£1.49 £1.24
47	MO327772095/0 Available to backorder	Micro Handbrake Stirrup Support	£1.55 £1.29
48	MO112735105/0 Available to backorder	Screw	£1.55 £1.29
51	MO127047012/0 Available to backorder	Fast Release Bush Rider	£13.09 £10.91
52	MO127430577/0 Available to backorder	Spring	£5.92 £4.93
53	MO325670008/1 In stock	Washer	£1.55 £1.29
54	MO112000955/0 Available to backorder	Circlip Ø8	£1.33 £1.11
60	MO112521331/0 Available to backorder	Washer	£1.55 £1.29
61	MO125943009/0 Available to backorder	Screw	£1.62 £1.35
62	MO384317107/0 Available to backorder	Clamp	£13.44 £11.20
63	MO127430598/0 Available to backorder	Spring	£5.35 £4.46
65	MO384317109/0 Available to backorder	Lever	£12.38 £10.32
67	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
69	MO119216050/0 Available to backorder	Bearing	£2.40 £2.00
71	MO112154510/0 In stock	Nut	£1.55 £1.29
72	MO384004608/0 In stock	Cable	£22.81 £19.01
73	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
81	MO112793102/0 In stock	Screw To 14-4-2021	£1.55 £1.29
81	MO112792611/0 Available to backorder	Screw From 15-4-2021	£1.55 £1.29
82	MO112540260/0 Available to backorder	Washer From 15-4-2021	£1.55 £1.29
82	MO112583500/0 Available to backorder	Grower To 14-4-2021	£1.55 £1.29
83	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
84	MO382547061/1 Available to backorder	Plate	£36.59 £30.49
85	MO122524970/3 Available to backorder	Pin	£1.69 £1.41
86	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
87	MO118203854/0 Available to backorder	Cap	£1.55 £1.29
94	MO327773093/1 Available to backorder	Bracket From S.N 21DA3RON009912	£19.70 £16.42
94	MO327773093/0 Available to backorder	Bracket To S.N 21DA3RON009911	£17.89 £14.91
95	MO327110564/0 Available to backorder	Cover	£3.24 £2.70
96	MO327787113/0 Available to backorder	Support	£3.67 £3.06
97	MO327600183/0 Available to backorder	Guard	£3.94 £3.28
98	MO112604896/0 Available to backorder	Crown Fastener	£1.55 £1.29
99	MO122517866/0 Available to backorder	Pin	£1.55 £1.29
100	MO127430601/0 Available to backorder	Spring	£2.04 £1.70
101	MO112791213/1 In stock	Screw	£1.55 £1.29
102	MO112292102/0 In stock	Nut	£1.69 £1.41
103	MO119410622/1 In stock	Microswitch From S.N 19HA3RON000692	£6.62 £5.52
104	MO112437503/0 Available to backorder	Plate	£1.97 £1.64
105	MO112728686/0 In stock	Screw	£1.55 £1.29
106	MO112789008/0 Available to backorder	Hex-Head Screw M5 X 20	£1.82 £1.52
