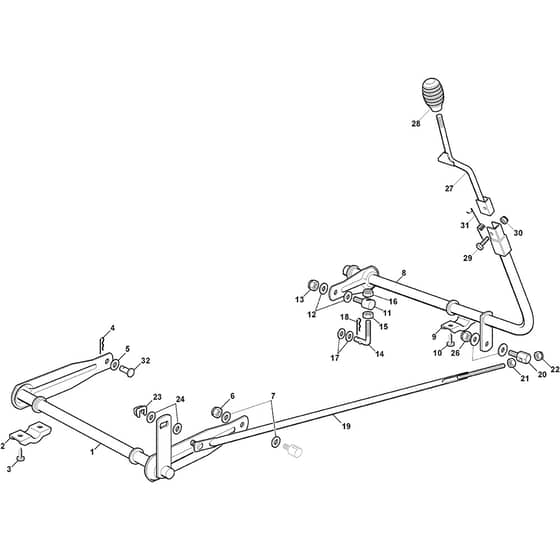

Rider 28H - 2021 - 2T0210447/AT1 - Atco Ride On Mower Cutting Plate Lifting Diagram

Name: Rider 28H - 2021 - 2T0210447/AT1 - Atco Ride On Mower Cutting Plate Lifting Diagram
SKU: rider_28h_2t0210447_at1_cutting_plate_lifting-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Rider 28H - 2021 - 2T0210447/AT1 - Atco Ride On Mower Cutting Plate Lifting Diagram

Description

Atco Rider 28H Parts Diagram

Product Name - Rider 28H

Model Year - 2021

Model Type - F 72 Hydro F.L.

Art.N - 2T0210447/AT1

Engine Model - ST 350

Be the first to review this product

0 product questions

	Part No.	Details
1	MO384001025/0 Available to backorder	Lifting Axle	£42.23 £35.19
8	MO384001005/2 Available to backorder	Lifting Axle	£33.79 £28.16
9	MO327546015/2 Available to backorder	Plate	£1.55 £1.29
10	MO112729600/0 Available to backorder	Screw	£1.55 £1.29
11	MO125510007/2 Available to backorder	Pin	£5.64 £4.70
12	MO325670008/1 In stock	Washer	£1.55 £1.29
14	MO125840003/2 Available to backorder	Tie Rod	£12.38 £10.32
15	MO112295200/0 In stock	Nut	£1.40 £1.17
16	MO112156602/0 In stock	Nut	£1.40 £1.17
17	MO322672150/0 Available to backorder	Antifriction Washer	£1.82 £1.52
18	MO124487997/0 Available to backorder	Cotter Pin	£1.55 £1.29
19	MO184002051/0 Available to backorder	Connecting Rod	£21.26 £17.72
20	MO125510168/0 Available to backorder	Pin	£4.50 £3.75
21	MO112293200/0 In stock	Nut	£1.55 £1.29
23	MO112436050/0 In stock	Plate	£1.82 £1.52
25	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
26	MO112155000/0 In stock	Nut	£1.55 £1.29
27	MO384317065/1 Available to backorder	Lever	£15.48 £12.90
28	MO125394510/0 Available to backorder	Knob	£4.07 £3.39
29	MO112674700/0 Available to backorder	Screw	£1.55 £1.29
30	MO112154510/0 In stock	Nut	£1.55 £1.29
31	MO127430555/0 Available to backorder	Spring	£2.95 £2.46
32	MO127510114/0 Available to backorder	Front R.H Hook Deck Pin	£8.74 £7.28
