Rider 28 H - 2015-2020 - 2T0220287/AT5 - Atco Ride On Mower Frame Diagram

Name: Rider 28 H - 2015-2020 - 2T0220287/AT5 - Atco Ride On Mower Frame Diagram
SKU: rider_28_h_2t0220287_at5_frame-group
Price: 1.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Rider 28 H - 2015-2020 - 2T0220287/AT5 - Atco Ride On Mower Frame Diagram

Description

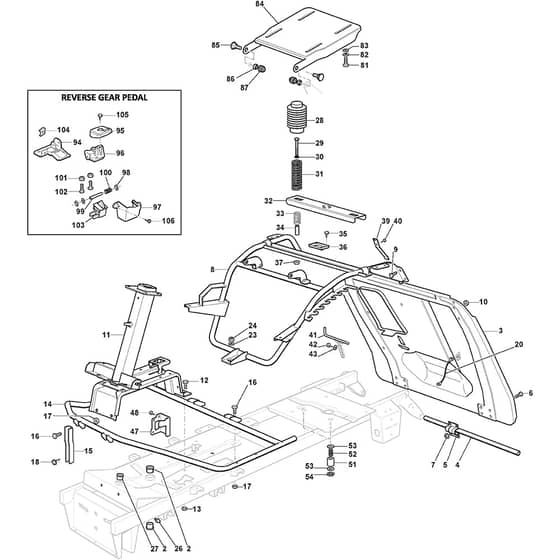

Atco Rider 28 H Parts Diagram

Product Name - Rider 28H

Model Year - 2015-2020

Model Type - F 72 Hydro F.L.

Art.N - 2T0220287/AT5

Engine Model - B&S Series 3130 AVS 344cc

Be the first to review this product

0 product questions

	Part No.	Details
1	MO125034002/1 Available to backorder	Bushing	£3.79 £3.16
3	MO384545057/3 Available to backorder	Rear Plate	£161.89 £134.91
4	MO127037000/1 Available to backorder	Rear Plate Fulcrum	£8.87 £7.39
5	MO325547012/1 Available to backorder	Plate	£4.22 £3.52
6	MO112791213/1 In stock	Screw	£1.55 £1.29
7	MO112292102/0 In stock	Nut	£1.69 £1.41
8	MO384801149/1 Available to backorder	Seat Frame From S.N FC140668	£120.95 £100.79
11	MO382785243/0 Available to backorder	Steering Column Support	£88.68 £73.90
14	MO384801107/3 Available to backorder	Footboard Support	£50.68 £42.23
15	MO327787025/0 Available to backorder	Support	£3.10 £2.58
16	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
17	MO112293201/0 In stock	Nut	£1.69 £1.41
18	MO112735120/0 Available to backorder	Screw	£1.55 £1.29
20	MO384040300/0 Available to backorder	Rear Plate	£3.38 £2.82
23	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
24	MO112155000/0 In stock	Nut	£1.55 £1.29
26	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
27	MO125034001/0 Available to backorder	Brass	£3.79 £3.16
28	MO325122003/0 Available to backorder	Hood	£9.71 £8.09
29	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
30	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
31	MO127430596/0 Available to backorder	Spring	£12.11 £10.09
32	MO327543047/0 Available to backorder	Plate	£9.64 £8.03
33	MO125430263/0 Available to backorder	Spring	£1.40 £1.17
34	MO125160048/0 Available to backorder	Spacer	£1.97 £1.64
35	MO112728686/0 In stock	Screw	£1.55 £1.29
36	MO325785379/1 Available to backorder	Support	£1.55 £1.29
39	MO127430600/0 Available to backorder	Spring	£2.81 £2.34
40	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
41	MO127294001/0 Available to backorder	Rear Conveyor Guide	£20.40 £17.00
43	MO112523040/0 In stock	Washer	£1.49 £1.24
47	MO327772095/0 Available to backorder	Micro Handbrake Stirrup Support	£1.55 £1.29
48	MO112735105/0 Available to backorder	Screw	£1.55 £1.29
51	MO127047012/0 Available to backorder	Fast Release Bush Rider	£13.09 £10.91
52	MO127430577/0 Available to backorder	Spring	£5.92 £4.93
53	MO325670008/1 In stock	Washer	£1.55 £1.29
54	MO112000955/0 Available to backorder	Circlip Ø8	£1.33 £1.11
81	MO112793102/0 In stock	Screw To 14-4-2021	£1.55 £1.29
82	MO112540260/0 Available to backorder	Washer From 15-4-2021	£1.55 £1.29
82	MO112583500/0 Available to backorder	Grower To 14-4-2021	£1.55 £1.29
84	MO382547061/1 Available to backorder	Plate	£36.59 £30.49
85	MO122524970/3 Available to backorder	Pin	£1.69 £1.41
86	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
87	MO118203854/0 Available to backorder	Cap	£1.55 £1.29
94	MO327773093/0 Available to backorder	Bracket To S.N 21DA3RON009911	£17.89 £14.91
94	MO327773093/1 Available to backorder	Bracket From S.N 21DA3RON009912	£19.70 £16.42
95	MO327110564/0 Available to backorder	Cover	£3.24 £2.70
96	MO327787113/0 Available to backorder	Support	£3.67 £3.06
97	MO327600183/0 Available to backorder	Guard From S.N FC133235	£3.94 £3.28
98	MO112604896/0 Available to backorder	Crown Fastener	£1.55 £1.29
99	MO122517866/0 Available to backorder	Pin	£1.55 £1.29
100	MO127430601/0 Available to backorder	Spring	£2.04 £1.70
106	MO112789008/0 Available to backorder	Hex-Head Screw M5 X 20	£1.82 £1.52
