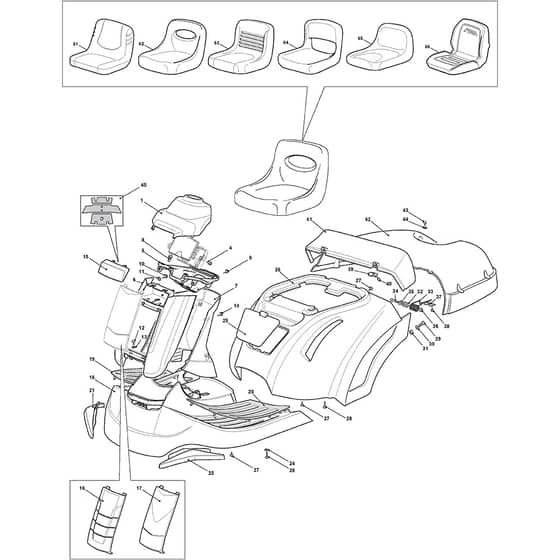

Rider 28 H - 2015-2020 - 2T0220287/AT5 - Atco Ride On Mower Body Diagram

Name: Rider 28 H - 2015-2020 - 2T0220287/AT5 - Atco Ride On Mower Body Diagram
SKU: rider_28_h_2t0220287_at5_body-group
Price: 1.16 GBP
Availability: InStock

Part No. rider_28_h_2t0220287_at5_body-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Rider 28 H - 2015-2020 - 2T0220287/AT5 - Atco Ride On Mower Body Diagram

Description

Atco Rider 28 H Parts Diagram

Product Name - Rider 28H

Model Year - 2015-2020

Model Type - F 72 Hydro F.L.

Art.N - 2T0220287/AT5

Engine Model - B&S Series 3130 AVS 344cc

	Part No.	Details
5	MO327787084/0 Available to backorder	Lights And Card Support	£18.94 £15.78
6	MO327787114/0 Available to backorder	Front Dashboard Support. Green Dark Green	£40.82 £34.02
7	MO327787104/0 Available to backorder	Rear Dashboard Support. Green	£43.63 £36.36
8	MO125943010/0 In stock	Screw	£1.97 £1.64
14	MO112735403/0 In stock	Screw	£1.55 £1.29
15	MO325410913/0 Available to backorder	Grill	£11.26 £9.38
18	MO327110458/2 Available to backorder	Footboard Cover. Green Dark Green	£146.42 £122.02
19	MO127110304/0 Available to backorder	Right Footboard Cover	£9.86 £8.22
20	MO127110305/1 Available to backorder	Left Footboard Cover From S.N FC127462	£9.86 £8.22
21	MO327110501/0 Available to backorder	Black Wheels Cover. Right	£7.39 £6.16
22	MO327110502/0 Available to backorder	Black Wheels Cover. Left	£8.59 £7.16
25	MO327109528/0 Available to backorder	Front Cover. Green	£11.70 £9.75
26	MO384110164/1 Available to backorder	Green Wheels Cover Dark Green	£211.15 £175.96
28	MO112735410/0 Available to backorder	Screw	£1.63 £1.36
29	MO112791213/1 In stock	Screw	£1.55 £1.29
30	MO112523040/0 In stock	Washer	£1.55 £1.29
31	MO112154510/0 In stock	Nut	£1.55 £1.29
32	MO127047003/0 Available to backorder	Bushing	£1.70 £1.42
33	MO127430551/1 Available to backorder	Spring	£2.82 £2.35
34	MO112691200/0 Available to backorder	Screw	£1.70 £1.42
35	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
36	MO112155000/0 In stock	Nut	£1.55 £1.29
37	MO327546001/0 Available to backorder	Plate	£1.39 £1.16
39	MO327546003/0 Available to backorder	Plate	£1.63 £1.36
40	MO112735406/0 Available to backorder	Screw	£1.63 £1.36
41	MO327110461/0 Available to backorder	Fixed Grass-Catcher Cover. Green Dark Green	£45.04 £37.53
42	MO327110462/0 Available to backorder	Mobile Grass-Catcher Cover. Green Dark Green	£74.62 £62.18
43	MO112729601/1 Available to backorder	Screw	£1.49 £1.24
44	MO112523020/0 In stock	Washer	£1.55 £1.29
45	MO114366202/0 Available to backorder	Light Reflector Label	£4.24 £3.53
63	MO125722471/0 In stock	Seat [Mountfield]	£190.04 £158.37
