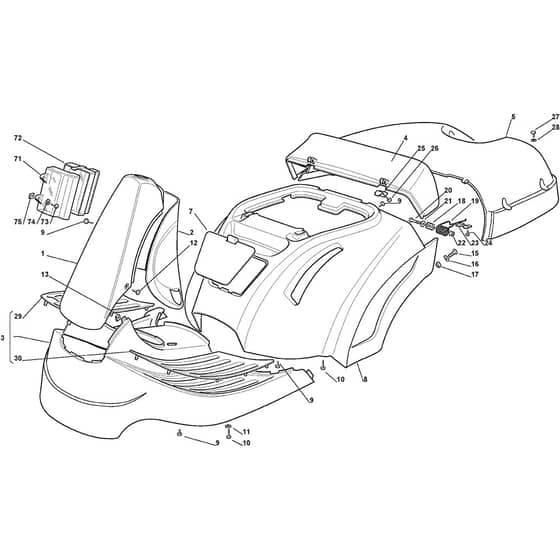

Rider 28 H - 2012-2013 - 2T0210247/AT2 - Atco Ride On Mower Body Diagram

Description

Atco Rider 28 H Parts Diagram

Product Name - Rider 28 H

Model Year - 2012-2013

Model Type - F 72 Hydro

Art.N - 2T0210247/AT2

Engine Model -

	Part No.	Details
4	MO327110461/0 Available to backorder	Fixed Grass-Catcher Cover. Green Dark Green	£45.04 £37.53
5	MO327110462/0 Available to backorder	Mobile Grass-Catcher Cover. Green Dark Green	£74.62 £62.18
7	MO327109528/0 Available to backorder	Front Cover. Green	£11.70 £9.75
10	MO112735410/0 Available to backorder	Screw	£1.63 £1.36
12	MO112735598/0 Available to backorder	Screw From 01-9-2014	£1.78 £1.48
13	MO112437503/0 Available to backorder	Plate	£1.97 £1.64
15	MO112791200/1 In stock	Screw	£1.55 £1.29
16	MO112523040/0 In stock	Washer	£1.55 £1.29
17	MO112154510/0 In stock	Nut	£1.55 £1.29
18	MO127047003/0 Available to backorder	Bushing	£1.70 £1.42
19	MO127430551/1 Available to backorder	Spring	£2.82 £2.35
20	MO112691200/0 Available to backorder	Screw	£1.70 £1.42
21	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
22	MO112155000/0 In stock	Nut	£1.55 £1.29
23	MO327546001/0 Available to backorder	Plate	£1.39 £1.16
25	MO327546003/0 Available to backorder	Plate	£1.63 £1.36
26	MO112735406/0 Available to backorder	Screw From 01-9-2014	£1.63 £1.36
26	MO112735402/0 In stock	Screw To 31-8-2014	£1.55 £1.29
27	MO112729601/1 Available to backorder	Screw From 01-9-2003	£1.49 £1.24
28	MO112521331/0 Available to backorder	Washer	£1.55 £1.29
29	MO127110304/0 Available to backorder	Right Footboard Cover	£9.86 £8.22
30	MO127110305/1 Available to backorder	Left Footboard Cover From 01-9-2014	£9.86 £8.22
71	MO125600020/0 Available to backorder	Upper Guard	£12.40 £10.33
73	MO112728460/0 Available to backorder	Screw	£1.55 £1.29
74	MO112521320/0 Available to backorder	Washer	£1.63 £1.36
75	MO112437502/0 Available to backorder	Plate	£1.55 £1.29
