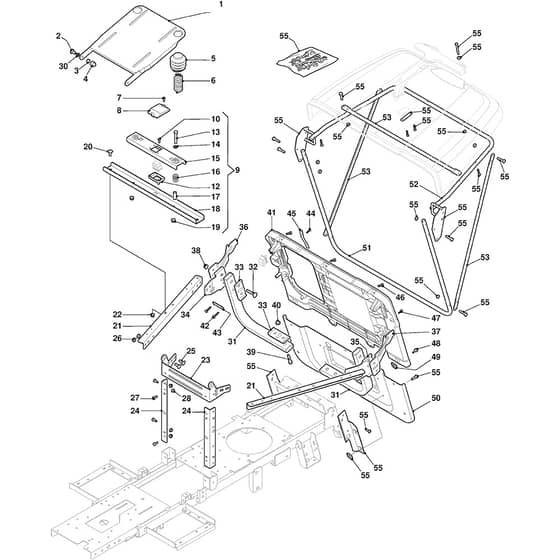

Rider 27 H - 2013-2020 - 2T0075247/AT3 - Atco Ride On Mower Frame Diagram

Name: Rider 27 H - 2013-2020 - 2T0075247/AT3 - Atco Ride On Mower Frame Diagram
SKU: rider_27_h_2t0075247_at3_frame-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Rider 27 H - 2013-2020 - 2T0075247/AT3 - Atco Ride On Mower Frame Diagram

Description

Atco Rider 27 H Parts Diagram

Product Name - Rider 27H

Model Year - 2013-2020

Model Type - MJ 66 E Hydro

Art.N - 2T0075247/AT3

Engine Model - 950 E-Series ES

Be the first to review this product

0 product questions

	Part No.	Details
1	MO382547061/1 Available to backorder	Plate	£36.59 £30.49
2	MO122524970/3 Available to backorder	Pin	£1.69 £1.41
3	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
4	MO118203854/0 Available to backorder	Cap	£1.55 £1.29
5	MO327737500/0 Available to backorder	Protection Hood	£5.92 £4.93
6	MO127430589/0 Available to backorder	Spring	£10.56 £8.80
7	MO112728706/0 In stock	Screw	£1.55 £1.29
8	MO327110508/0 Available to backorder	Micro Seat Cover. Black	£3.10 £2.58
10	MO112728686/0 In stock	Screw	£1.55 £1.29
12	MO325785379/1 Available to backorder	Support From 01-9-2013	£1.55 £1.29
13	MO112691400/0 Available to backorder	Screw	£1.55 £1.29
14	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
15	MO327543047/0 Available to backorder	Plate	£9.64 £8.03
16	MO125430263/0 Available to backorder	Spring	£1.40 £1.17
17	MO125160048/0 Available to backorder	Spacer	£1.97 £1.64
18	MO384394751/1 Available to backorder	Support	£40.82 £34.02
21	MO327650131/0 Available to backorder	Upper Stiffening	£13.31 £11.09
23	MO327543039/0 Available to backorder	Backup Plate	£15.13 £12.61
24	MO327010209/0 Available to backorder	Angular	£9.08 £7.57
25	MO112818690/0 Available to backorder	Screw	£1.61 £1.34
26	MO112293201/0 In stock	Nut	£1.69 £1.41
27	MO112791200/1 Available to backorder	Screw	£1.34 £1.12
28	MO112154510/0 In stock	Nut	£1.55 £1.29
30	MO9694-0001-00 Available to backorder	Washer	£1.55 £1.29
31	MO327869063/0 Available to backorder	Pipe	£16.19 £13.49
32	MO112819105/0 Available to backorder	Screw	£1.97 £1.64
33	MO327543029/0 Available to backorder	Plate	£5.48 £4.57
34	MO327772171/0 Available to backorder	Bracket. Right	£7.46 £6.22
35	MO327772225/0 Available to backorder	Bracket. Left	£8.80 £7.33
36	MO327772213/0 Available to backorder	Bracket. Right	£8.29 £6.91
37	MO327772215/1 Available to backorder	Bracket. Left From 01-9-2013	£8.29 £6.91
39	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
40	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
41	MO327543027/0 Available to backorder	Plate	£40.82 £34.02
43	MO322545142/0 Available to backorder	Plate	£1.55 £1.29
45	MO127430600/0 Available to backorder	Spring From 01-9-2013	£2.81 £2.34
46	MO112727801/0 Available to backorder	Screw	£1.55 £1.29
47	MO112728300/0 Available to backorder	Screw	£1.55 £1.29
48	MO125943010/0 Available to backorder	Screw	£1.97 £1.64
49	MO112437507/0 Available to backorder	Rapid Fixing Plate	£1.69 £1.41
50	MO327543025/0 Available to backorder	Plate	£68.99 £57.49
51	MO384801145/0 Available to backorder	Grasscatcher Frame	£32.38 £26.98
52	MO384801147/0 Available to backorder	Grasscatcher Upper Frame	£29.56 £24.63
53	MO327650133/0 Available to backorder	Upper Stiffening	£8.59 £7.16
55	MO384180218/1 Available to backorder	Grasscatcher Assembly Kit	£54.90 £45.75
