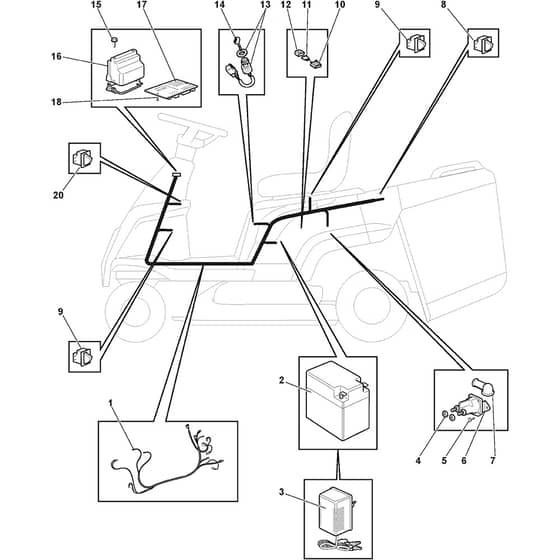

Rider 27 H - 2013-2020 - 2T0075247/AT3 - Atco Ride On Mower Electrical Parts Diagram

Description

Atco Rider 27 H Parts Diagram

Product Name - Rider 27H

Model Year - 2013-2020

Model Type - MJ 66 E Hydro

Art.N - 2T0075247/AT3

Engine Model - 950 E-Series ES

Be the first to review this product

0 product questions

	Part No.	Details
1	MO184040132/0 Available to backorder	Cables Ass.Y	£75.31 £62.76
3	MO1134-9250-01 In stock	Battery Charger UK plug - 0.2A	£60.06 £50.05
4	MO9743-5121-32 Available to backorder	Nut	£1.40 £1.17
5	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
6	MO118736113/0 In stock	Starter Relay	£38.00 £31.67
7	MO118564861/2 Available to backorder	Protection	£6.76 £5.63
8	MO119410618/0 Available to backorder	Microswitch	£4.78 £3.98
9	MO119410622/1 In stock	Microswitch N.O. - Black	£6.62 £5.52
10	MO133500007/0 Available to backorder	Fuse Carrier	£7.31 £6.09
11	MO133340040/0 Available to backorder	Fuse 10 A	£2.26 £1.88
12	MO133215000/0 Available to backorder	Cover	£3.52 £2.93
13	MO118450075/1 In stock	Starting Switch	£24.22 £20.18
14	MO118210023/0 In stock	Starting Key	£7.03 £5.86
15	MO112728523/0 Available to backorder	Screw	£1.55 £1.29
16	MO127600119/0 Available to backorder	Electronis Card Upper Protecti	£3.38 £2.82
17	MO127722354/2 In stock	Electronic Card From 01-9-2013	£100.44 £83.70
18	MO112729601/1 Available to backorder	Screw	£1.48 £1.23
20	MO119410623/0 Available to backorder	Micro Switch N.C. Use 119410623.0	£7.62 £6.35
